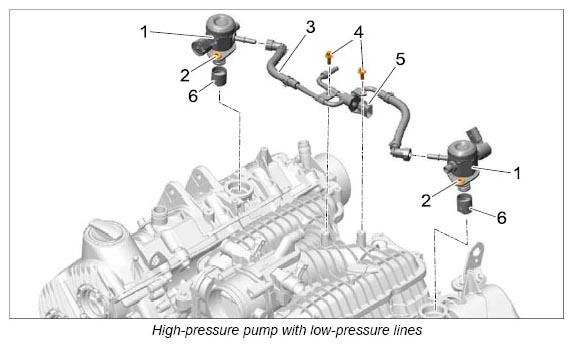

High-pressure pump and low-pressure lines

WARNING: This page is about a different car, the 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1	High-pressure pump/replace O-ring
2	Screw, M6 x 20/replace → Tightening torque: 10 Nm (7.5 ft lb.)
3	Low-pressure fuel line
	Check locking mechanism on the quick-connecting locks by trying to pull them off!
4	Screw, M6 x 16 → Tightening torque: 10 Nm (7.5 ft lb.)
5	Fuel pressure sensor (low-pressure sensor) → Tightening torque: 20 Nm (15 ft lb.)
6	Roller tappet
