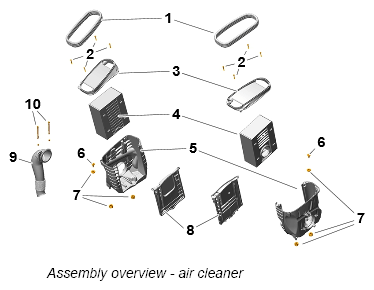

Assembly overview - air cleaner
WARNING: This page is about a different car, the 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
| 1 | Rubber seal |
| 2 | Fastening screws → Tightening torque: 3.5 Nm (2.5 ft lb.) |
| 3 | Air cleaner housing cover |
| 4 | Air-cleaner element |
| 5 | Air cleaner housing |
| 6 | Fastening screws → Tightening torque: 3.5 Nm (2.5 ft lb.) |
| 7 | Rubber sleeves |
| 8 | Air-cleaner element cover |
| 9 | Air guide |
| 10 | Fastening bolt → Torque angle: 90° |
