Tightening specifications for exhaust manifold/turbocharger
WARNING: This page is about a different car, the 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
| 1-9 |
M8 nut - initial tightening: → Initial tightening: 20 Nm (15 ft lb.) |
| 1-9 |
M8 nut - final tightening: → Final tightening: 27 Nm (20 ft lb.) |

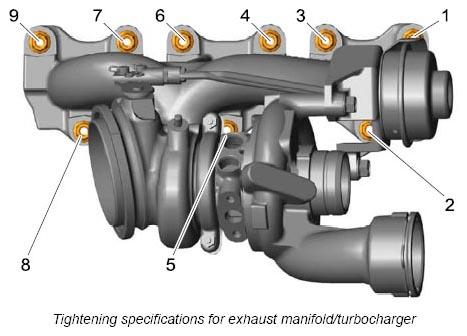

Tightening sequence 1 to 9 for both cylinder banks - always starting at the chain housing cover!
