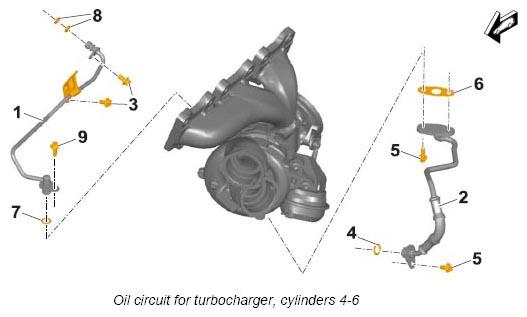

Oil circuit for turbocharger, cylinders 4-6
WARNING: This page is about a different car, the 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Oil feed line |
| 2 |
Oil extraction line |
| 3 |
Screw, M6 x 12 → Tightening torque: 10 Nm (7.5 ft lb.) |
| 4 |
O-ring, 12 x 3/replace |
| 5 |
Screw, M6 x 16 → Tightening torque: 10 Nm (7.5 ft lb.) |
| 6 |
Seal/replace |
| 7 |
O-ring, 10 x 3/replace |
| 8 |
O-ring, 8 x 2.5/replace |
| 9 |
Screw, M6 x 10 → Tightening torque: 10 Nm (7.5 ft lb.) |
