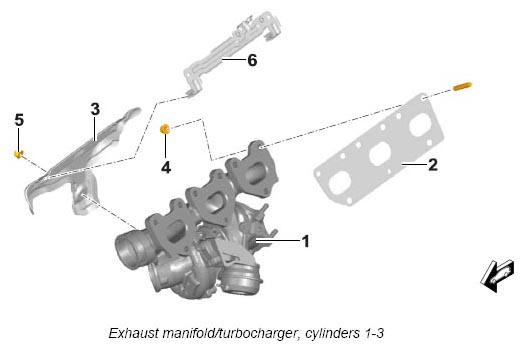

Exhaust manifold/turbocharger, cylinders 1-3
WARNING: This page is about a different car, the 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Exhaust manifold/turbocharger |
| 2 |
Manifold seal/replace |
| 3 |
Heat shield |
| 4 |
Nut, M8/replace → Initial tightening: 20 Nm (15 ft lb.) → Final tightening: 27 Nm (20 ft lb.) |
| 5 |
Nut, M6 → Tightening torque: 10 Nm (7.5 ft lb.) |
| 6 |
Holder |
