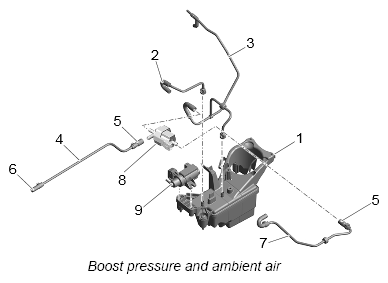

Boost pressure and ambient air
WARNING: This page is about a different car, the 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Vacuum reservoir |
| 2 |
Vacuum line |
| 3 |
Vacuum line |
| 4 |
Vacuum line |
| 5 |
Clamp 12.5-14 |
| 6 |
Clamp 10.5-11.5 |
| 7 |
Pressure line |
| 8 |
Change-over valve |
| 9 |
Pressure converter |
