Repair Procedure For Threaded Bush Without Collar

Information

• Remove wire thread inserts (Helicoil) that are installed as standard before drilling out  .

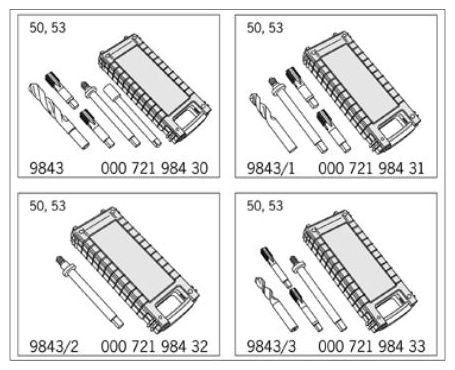

Overview of thread repair kits

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of thread repair kits

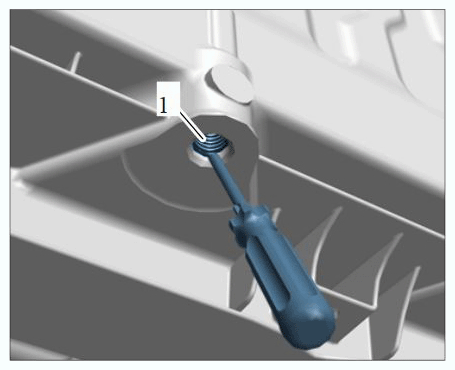

1. Loosen wire threaded insert (Helicoil) -1-  using a suitable screwdriver.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening wire threaded insert (Helicoil)

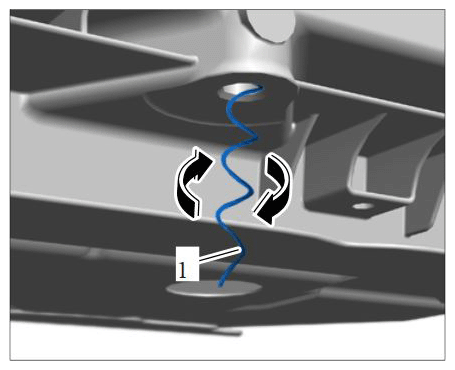

2. Pull out wire threaded insert (Helicoil) -1-  (-arrows-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing wire threaded insert (Helicoil)

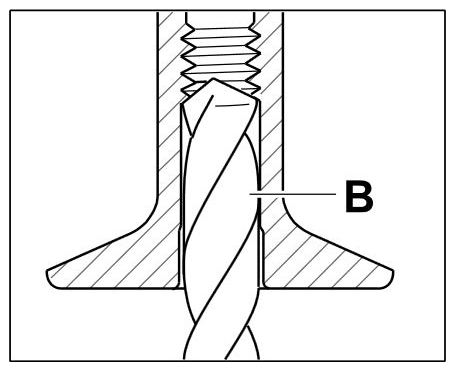

3. Drill out thread.
   1. 3.1. Drill out the old thread fully using special 3-flute drill bit  (contained in the set) -B-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Drilling out thread

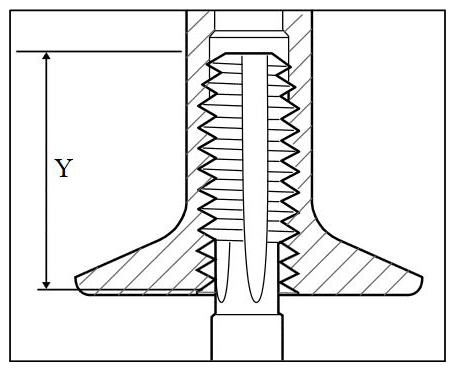

4. Cut thread.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cutting thread

   1. 4.1. Cut thread up to dimension -Y-  using a cutting tool.
   2. 4.2. Clean the thread.
      1. 4.2.1. Blow drill chips out of the thread with compressed air.
      2. 4.2.2. Clean thread with brake cleaner.
      3. 4.2.3. Dry thread by blowing it with compressed air.

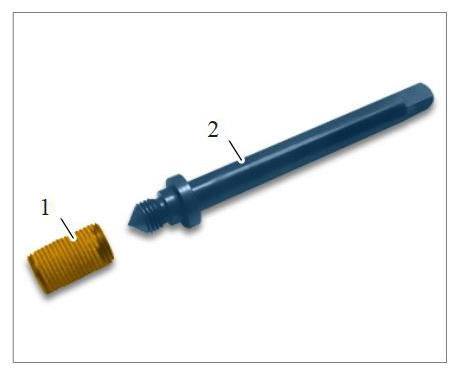

5. Position threaded bush on screw-in tool.
   1. 5.1. Screw threaded bush -1-  onto screw-in tool -2-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Positioning threaded bush on screw-in tool

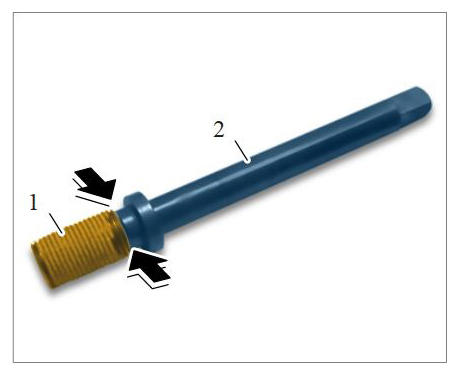

      Check that the threaded bush -1-  is screwed fully onto the screw-in tool -2-  (-arrows  -).

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Positioning threaded bush on screw-in tool

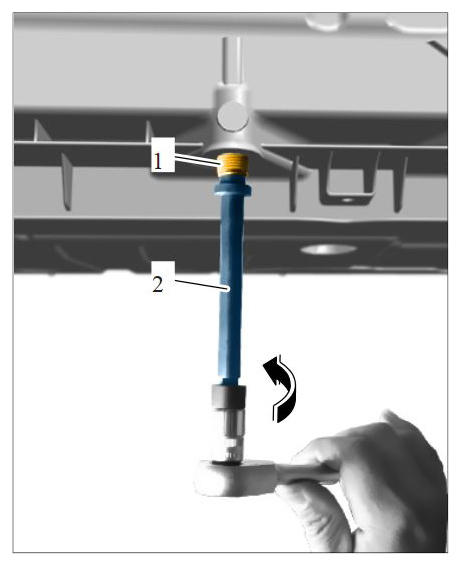

6. Screw in threaded bush.
   1. 6.1. Screw in threaded bush -1-  fully using the screw-in tool -2-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Screwing in threaded bush

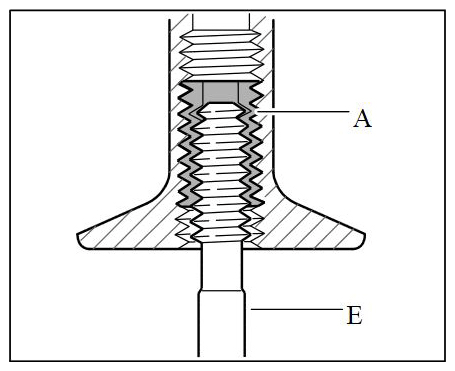

7. Unscrew and remove screw-in tool -E-  from the threaded bush -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unscrewing screw-in tool

   Information:  Heat threaded insert for a short time using a hot-air blower, Leister-Electron hot-air blower/V.A.G. 1416 WE 1119. → Time: 2 min → Temperature: 80°C  Alternatively, do not screw or unscrew threaded joints at the repaired thread for approx. 3-4 hours.

   • Heating or the specified waiting time is necessary in order to ensure that the threaded insert will not turn when you screw in the screw  .
8. Heat the thread.

Model year as of 2010
