General Information

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information: The following screws are available for repair work:

→ Lens-head screw, 999.073.917.01 → Tightening torque: 6 Nm (4.5 ftlb.)+/-1 Nm (+/-0.5 ftlb.) → Diameter: 3.5 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

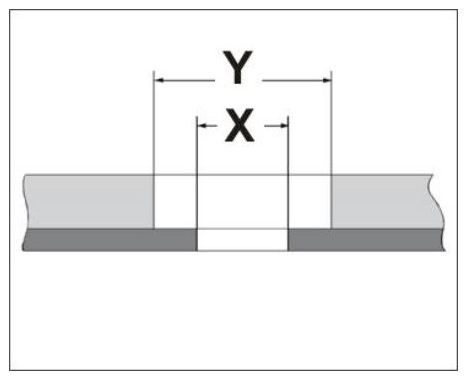

Hole geometry

→ Diameter: 7 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hole geometry

→ Lens-head screw, 999.073.541.01 → Tightening torque: 9.5 Nm (7.5 ftlb.)+/-1 Nm (+/-0.5 ftlb.) → Diameter: 4.7 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hole geometry

→ Diameter: 8 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hole geometry
