Pulling Punch Rivets

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information: The following description is intended only as a guide. A description of the steps involved and the various areas of application can be found in the operating instructions provided with the respective device.

Set up stud welder and prepare components for welding. → 5 x 00IN11 Stud Welding parameters for pulling punch rivets

Bolt	Welding time [ms]	Amperage rating [A]	Lift [mm]	Gas pre-flow time [ms]	Gas parameters [l/min]
Stainless-steel bolt, M6	32	650	1.0	1, 000
Stainless-steel bolt, M5	30	600	1.0	1, 000

Weld the weld stud onto the rivet head of the punch rivet.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

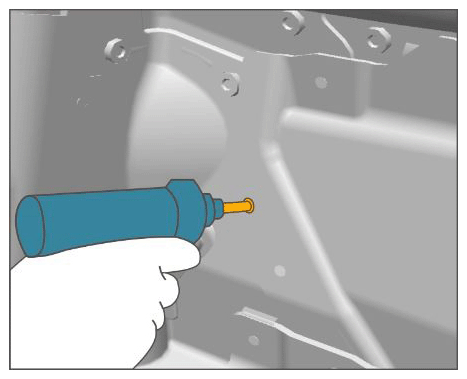

Welding on weld stud
Pull out punch rivet at the welded-on weld stud using a hydraulic riveting tool Compact booster WE 1670 with tool attachment Extension for Compact booster rivet attachment WE 1728.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

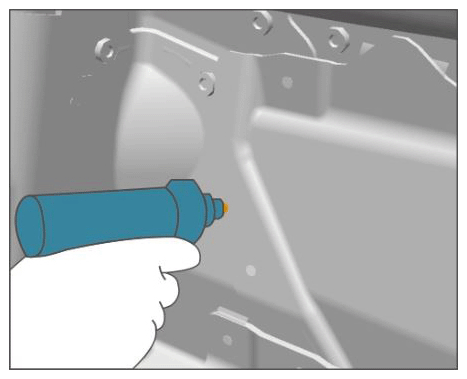

Pulling punch rivets
