Pressing Out Punch Rivets
WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
The following description is intended only as a guide. A description of the steps involved and the various areas of application can be found in the operating instructions provided with the respective device.
Punch and bottom die pairs
| Punch rivet | Pressing punch rivet joints out of two-layered panel joints with restricted access | D3 + D5 |
| Pressing punch rivet joints out of three-layered panel joints with restricted access | D4 + D5 | |
| Pressing punch rivet joints out of two-layered panel joints | S4 + D5 | |
| Pressing punch rivet joints out of three-layered panel joints | S5 + D5 |
- The correct punch and bottom die pair for the punch rivet joint is specified in the table above.
Information: The pressed-out punch rivet remains in the panel to be replaced and is removed together with the panel.
- Press out punch rivet using a hydraulic riveting tool Compact booster WE 1670.

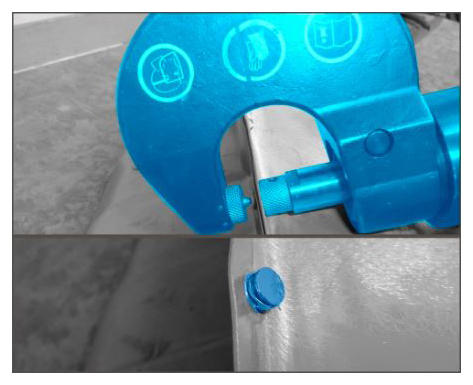

Pressing out punch rivet
