Technical Values -58- Rear Door

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance 1
Fastening screw for lock peg (striker pin)		Tightening torque	25 Nm (19 ftlb.)

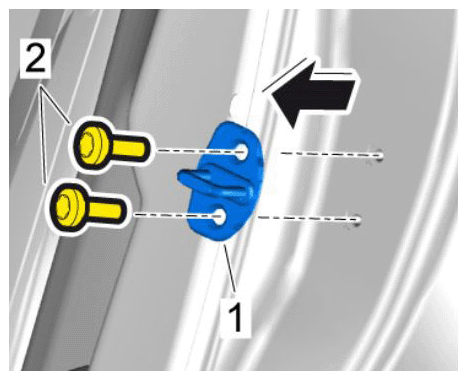

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing lock peg
Fastening screw securing door hinge to rear door		Tightening torque	55 Nm (41 ftlb.)

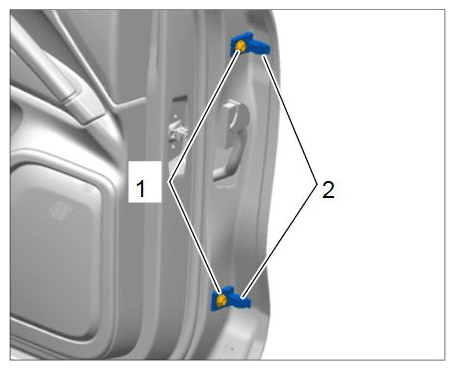

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing rear door hinge on door side
Fastening screw securing door hinge to B-pillar		Tightening torque	50 Nm (37 ftlb.)

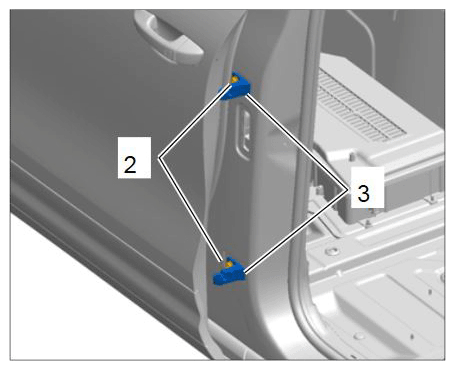

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for rear door hinge on body side at the outside
Fastening screw securing door hinge to inner B-pillar		Tightening torque	50 Nm (37 ftlb.)

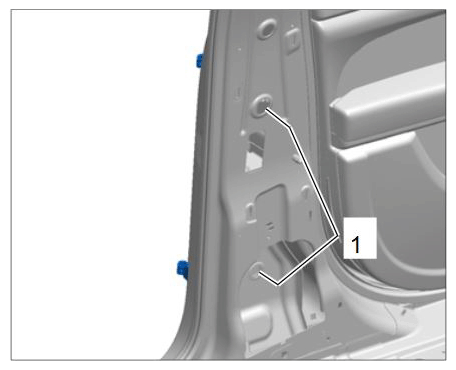

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for rear door hinge on body side at the inside
Fastening screw for door arrester		Tightening torque	33 Nm (24 ftlb.)

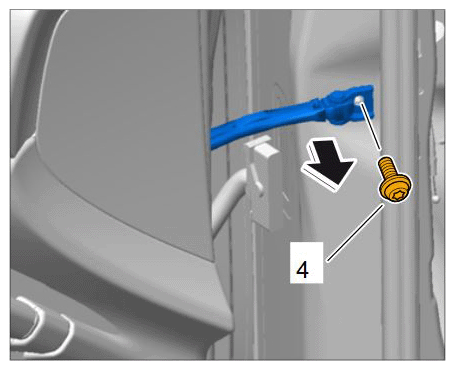

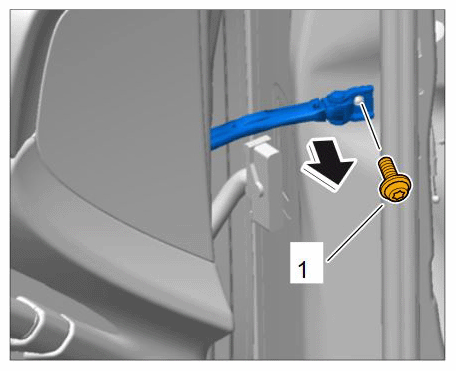

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Unscrewing fastening screw on door arrester
Fastening screw for door arrester	Item 1	Tightening torque	33 Nm (24 ftlb.)

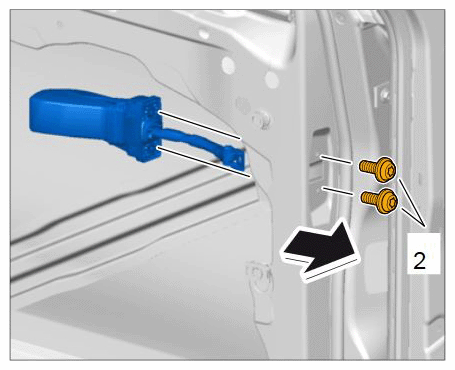

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Unscrewing fastening screw at the body
Fastening screw for door stay	Item 2	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Unscrewing fastening screws for door
Fastening screw for hinge		Tightening torque	27 Nm (20 ftlb.)	+/-3.5 Nm (+/-2.5 ftlb.)

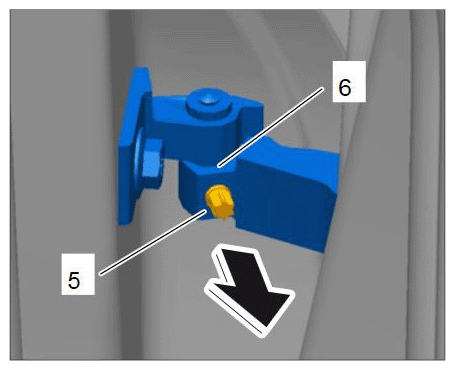

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening fastening screws for hinge connection
Fastening screw for rear door lock		Tightening torque	20 Nm (15 ftlb.)

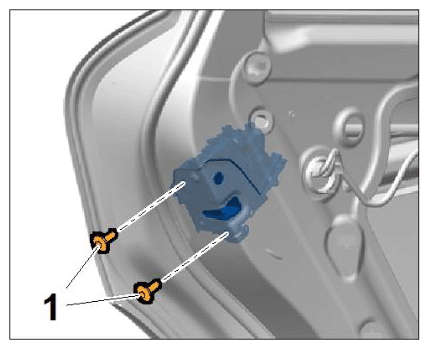

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for door lock
