Technical Values -57- Front Door

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance 1
Fastening screw for door handle		Tightening torque	2.5 Nm (2 ftlb.)

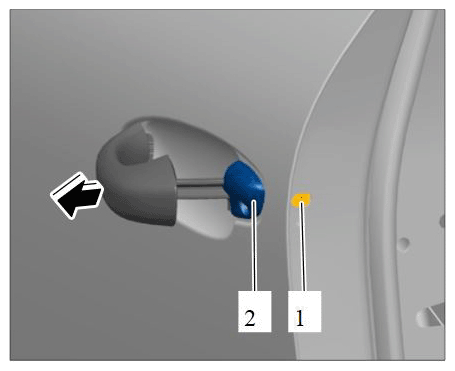

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening door handle
Fastening screw for door lock		Tightening torque	20 Nm (15 ftlb.)

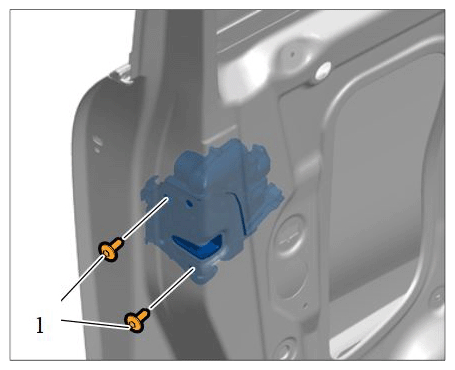

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Unscrewing fastening screws
Fastening screw for door arrester		Tightening torque	33 Nm (24 ftlb.)

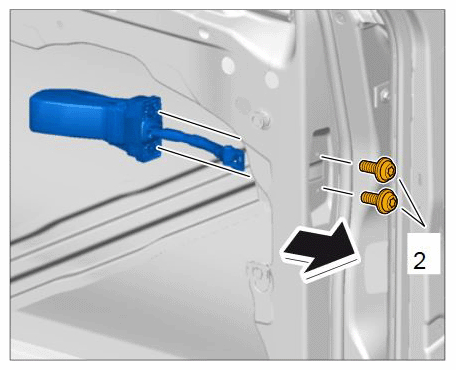

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Unscrewing fastening screw on door arrester
Fastening screw for door arrester	Item 2	Tightening torque	8 Nm (6 ftlb.)

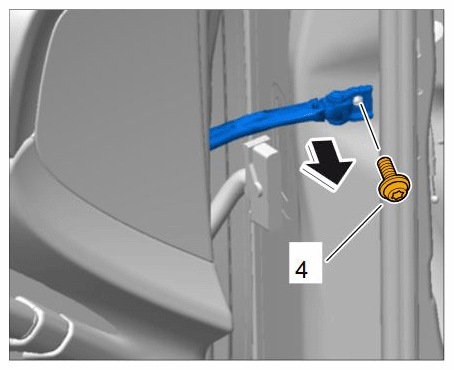

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Unscrewing fastening screws for door
Fastening screw for hinge		Tightening torque	27 Nm (20 ftlb.)	+/-3.5 Nm (+/-2.5 ftlb.)

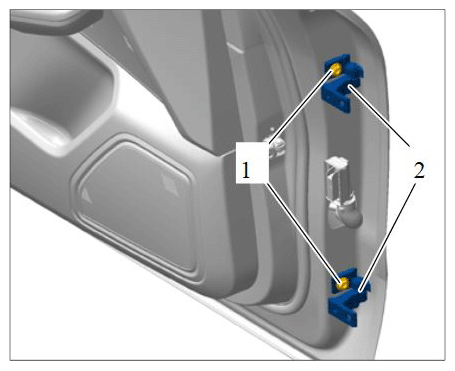

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening fastening screws for hinge connection
Fastening screw for lock peg (striker pin)		Tightening torque	25 Nm (19 ftlb.)

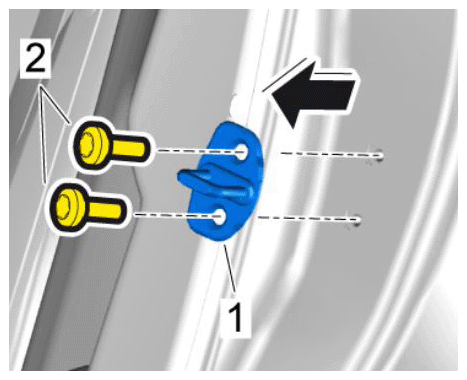

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing lock peg
Fastening screw securing hinge to front door		Tightening torque	55 Nm (41 ftlb.)

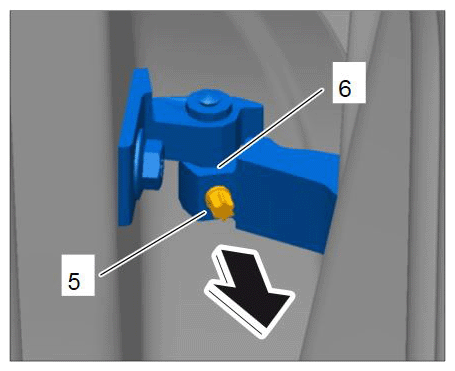

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door hinge
Door hinge to outer A-pillar		Tightening torque	50 Nm (37 ftlb.)

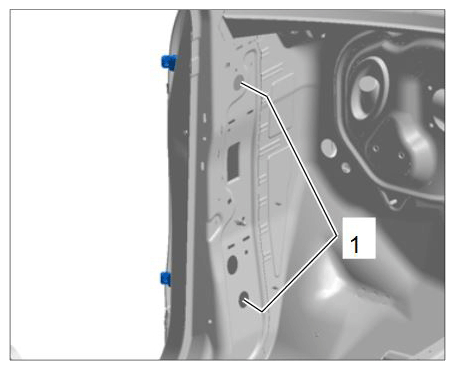

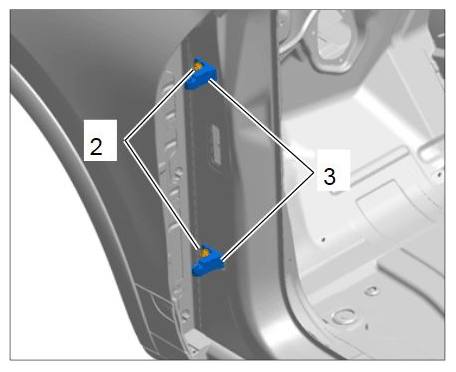

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening rear door hinge on body side at the outside
Door hinge to inner A-pillar		Tightening torque	50 Nm (37 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening rear door hinge on body side at the inside
