Technical Values -55- Rear Lid

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Guide pin to body	Screw, M6	Tightening torque	10 Nm (7.5 ftlb.)
Mounting for gas-filled shock absorber holder/actuating cylinder		Tightening torque	10 Nm (7.5 ftlb.)

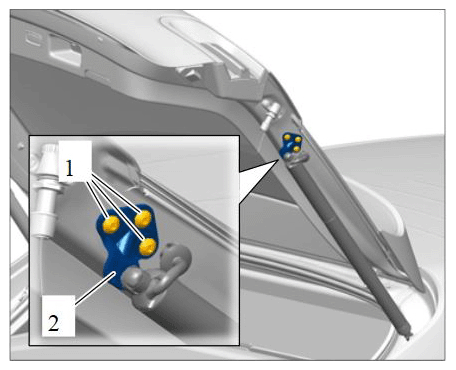

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bracket for gas-filled shock absorber
Fastening screw for tailgate hinge		Tightening torque	10 Nm (7.5 ftlb.)

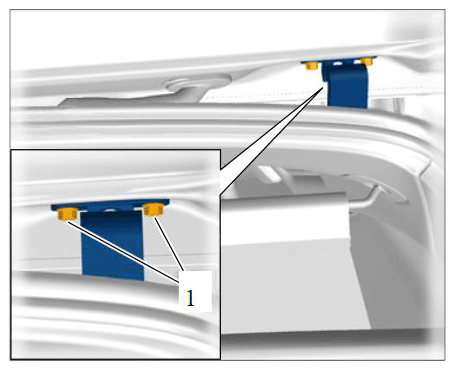

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tailgate hinge mounting
Fastening screw for adjusting element		Tightening torque	8 Nm (6 ftlb.)

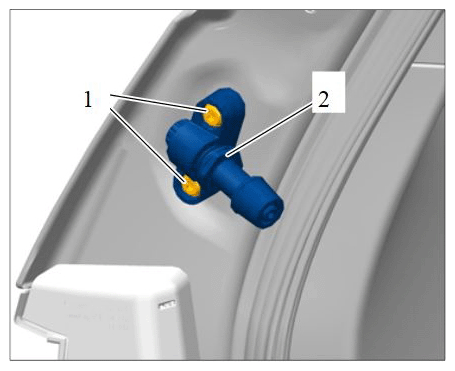

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting element mounting
Fastening screw for guide wedge		Tightening torque	6 Nm (4.5 ftlb.)

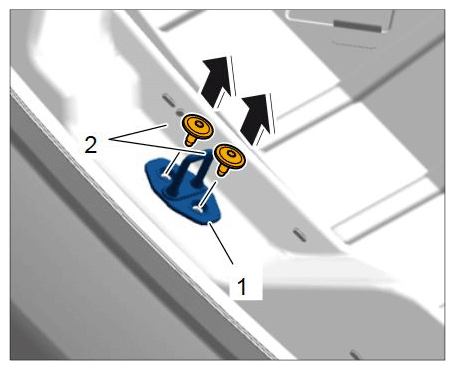

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing guide wedge

Location	Description	Type	Basic value	Tolerance 1
Fastening screw for lid hinge		Tightening torque	10 Nm (7.5 ftlb.)

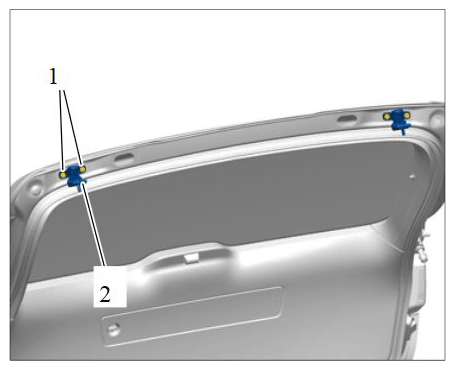

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear lid hinge
Fastening nut for lid hinge (on body side)		Tightening torque	23 Nm (17 ftlb.)

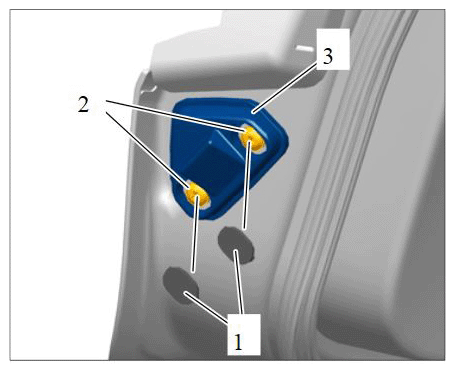

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hinge on body side
Fastening screw for lower part of lid lock		Tightening torque	18 Nm (13 ftlb.)

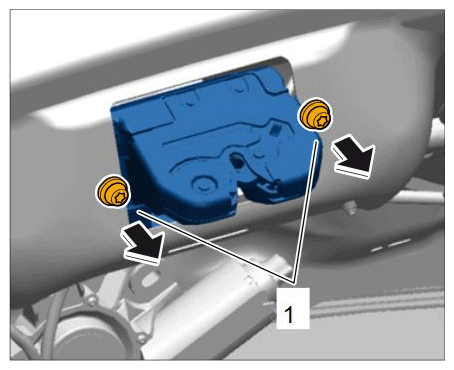

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing lower part of lid lock
Fastening screw for upper part of lid lock		Tightening torque	8 Nm (6 ftlb.)	Torque angle 45°

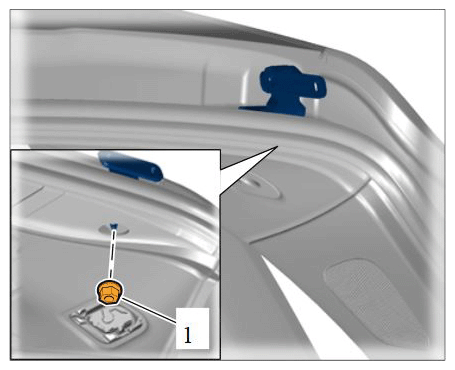

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Unscrewing fastening screws
Fastening screw for lid adjusting element, side	Item 6	Tightening torque	8 Nm (6 ftlb.)

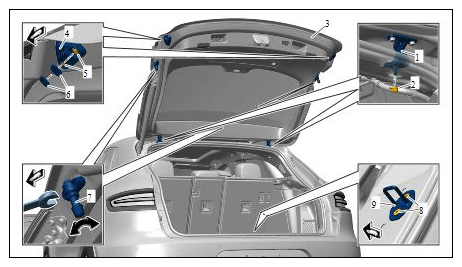

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting rear lid
