Technical Values -55- Lower Part Of Lid Lock

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

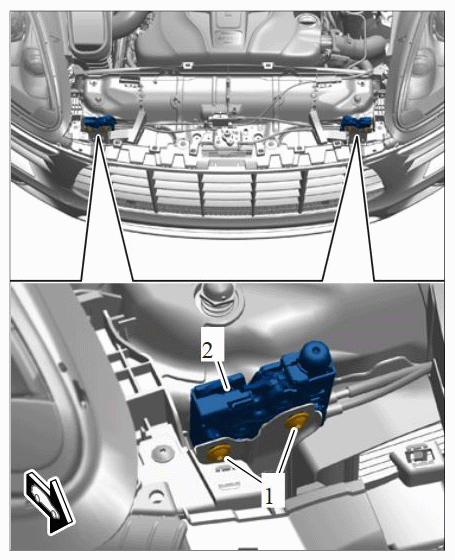

Fig 1: Lower Part Of Lid Lock Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw → Tightening torque: 11 Nm (8 ftlb.)
