Technical Values -51- Dashboard Bracket

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

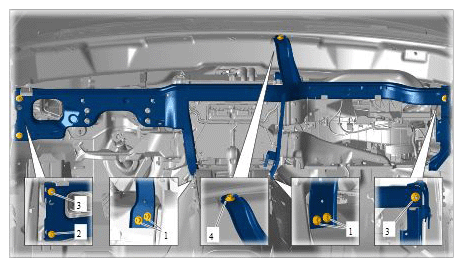

Screw → Tightening torque: 20 Nm (15 ftlb.)
Screw → Tightening torque: 20 Nm (15 ftlb.)
Nut → Tightening torque: 20 Nm (15 ftlb.)
Screw → Tightening torque: 20 Nm (15 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

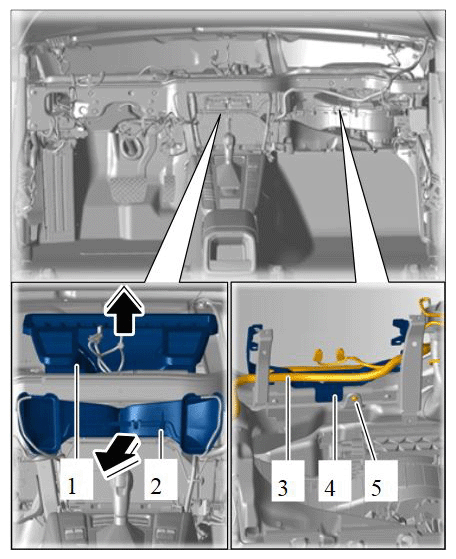

Screw → Tightening torque: 1.5 Nm (1 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

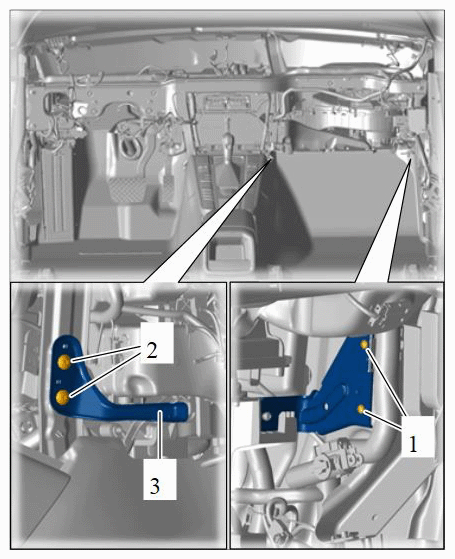

1, 2 - Screw → Tightening torque: 9 Nm (6.5 ftlb.)
