Technical Values -50- Lock Carrier

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

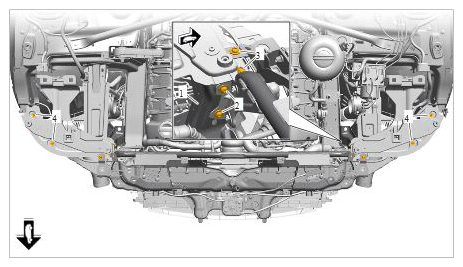

G11977874

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2 - Screw → Tightening torque: 9.7 Nm (7.5 ftlb.)
3 - Screw → Tightening torque: 10 Nm (7.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5 - Screw → Tightening torque: 5 Nm (3.5 ftlb.)
6 - Nut → Tightening torque: 23 Nm (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

4 - Screw → Tightening torque: 4.5 Nm (3.25 ftlb.)
5 - Screw → Tightening torque: 4.5 Nm (3.25 ftlb.)
6 - Screw → Tightening torque: 9.7 Nm (7.5 ftlb.)
7 - Screw → Tightening torque: 9.7 Nm (7.5 ftlb.)

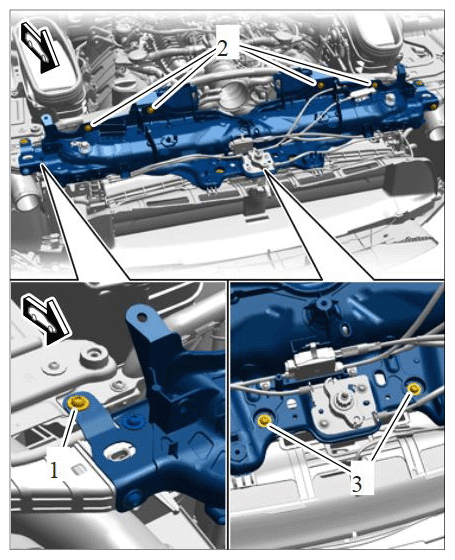

G11977877

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw → Tightening torque: 9.7 Nm (7.5 ftlb.)
Screw → Tightening torque: 9.7 Nm (7.5 ftlb.)
Screw → Tightening torque: 2.5 Nm (2 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2 - Screw → Tightening torque: 10 Nm (7.5 ftlb.)
