Technical Values: Overview

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance 1 Tolerance 2
Transverse strut to body, top   Tightening torque 9.7 Nm (7.5 ftlb.)
Transverse strut to body, side   Tightening torque 10 Nm (7.5 ftlb.)
Support to lock carrier   Tightening torque 5 Nm (3.5 ftlb.)
Support to chassis subframe   Tightening torque 23 Nm (17 ftlb.)
Lock carrier to radiator   Tightening torque 4.5 Nm (3.25 ftlb.)
Radiator bracket to lock carrier   Tightening torque 4.5 Nm (3.25 ftlb.)
Upper part of lock carrier to lock carrier   Tightening torque 9.7 Nm (7.5 ftlb.)
Wing strut to lock carrier   Tightening torque 9.7 Nm (7.5 ftlb.)
Upper part of lock carrier to body   Tightening torque 9.7 Nm (7.5 ftlb.)
Upper part of lock carrier to transverse strut   Tightening torque 9.7 Nm (7.5 ftlb.)
Upper part of lock carrier to cooling-air flaps   Tightening torque 2.5 Nm (2 ftlb.)
Release mechanism on upper part of lock carrier   Tightening torque 10 Nm (7.5 ftlb.)
Wheel housing liner to body Nut Tightening torque 2.5 Nm (2 ftlb.)
Wheel housing liner to body Screw Tightening torque 2 Nm (1.5 ftlb.)
Bracket to cardan tunnel Fastening screw Tightening torque 20 Nm (15 ftlb.)
Bracket to A-pillar Fastening screw Tightening torque 20 Nm (15 ftlb.)
Bracket to A-pillar Fastening nut Tightening torque 20 Nm (15 ftlb.)
Bracket to body Fastening screw Tightening torque 20 Nm (15 ftlb.)
Air guide to bracket   Tightening torque 1.5 Nm (1 ftlb.)
Support to bracket   Tightening torque 9 Nm (6.5 ftlb.)
Cover on front underbody Fastening screw Tightening torque 2.5 Nm (2 ftlb.)
Cover on center underbody Fastening screw Tightening torque 2.5 Nm (2 ftlb.)
Cover on transmission cross member Fastening screw Tightening torque 3.5 Nm (2.5 ftlb.)
Cover on center underbody Fastening nut Tightening torque 2.5 Nm (2 ftlb.)
Cover on rear underbody Fastening nut Tightening torque 2.5 Nm (2 ftlb.)
Fastening nut securing wheel housing liner to body Item 1 Tightening torque 2.5 Nm (2 ftlb.)
Fastening screw securing wheel housing liner to body Item 2 Tightening torque 2 Nm (1.5 ftlb.)
Guide pin to body Screw, M6 Tightening torque 10 Nm (7.5 ftlb.)

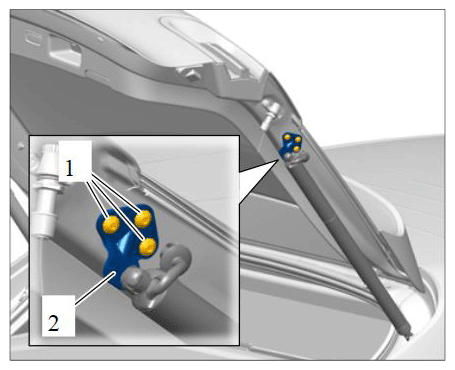

Mounting for gas-filled shock absorber holder/actuating cylinder   Tightening torque 10 Nm (7.5 ftlb.)
G11977837Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bracket for gas-filled shock absorber

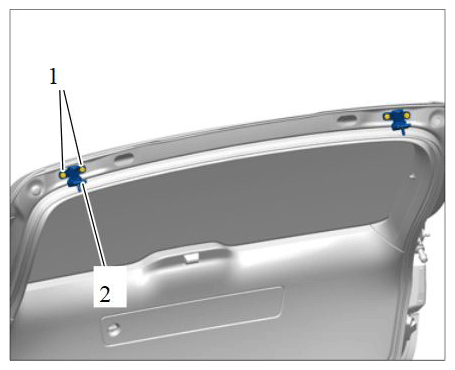

Fastening screw for tailgate hinge   Tightening torque 10 Nm (7.5 ftlb.)
G11977838Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tailgate hinge mounting
Fastening screw for adjusting element   Tightening torque 8 Nm (6 ftlb.)

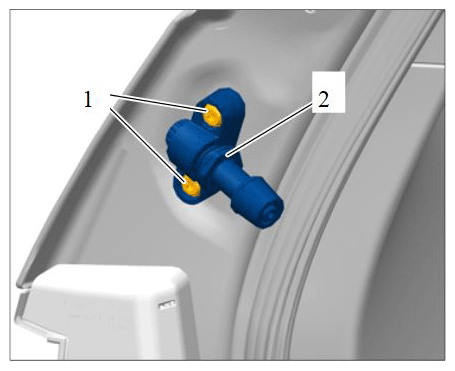

G11977839Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjusting element mounting
Fastening screw for guide wedge   Tightening torque 6 Nm (4.5 ftlb.)

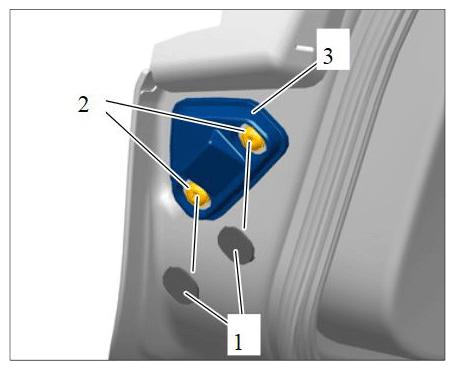

G11977840Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing guide wedge
Lower part of lock carrier to lock carrier   Tightening torque 11 Nm (8 ftlb.)
Fastening nut for front lid   Tightening torque 20 Nm (15 ftlb.)

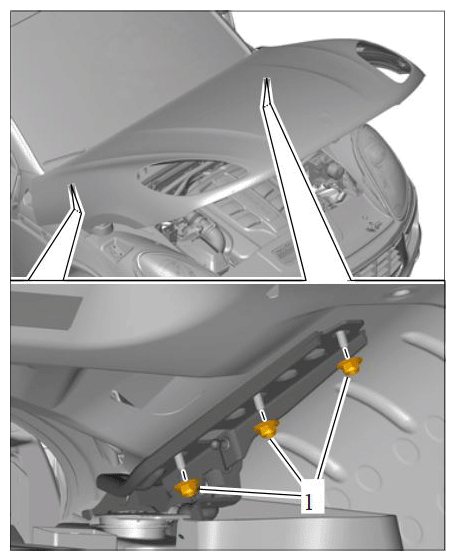

G11977841Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front lid

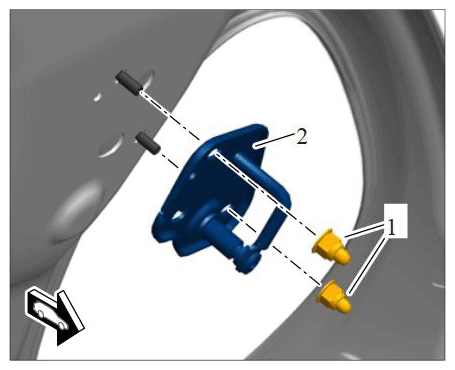

Fastening screw for upper part of lid lock, front   Tightening torque 8 Nm (6 ftlb.)
G11977842Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nuts for upper part of lid lock

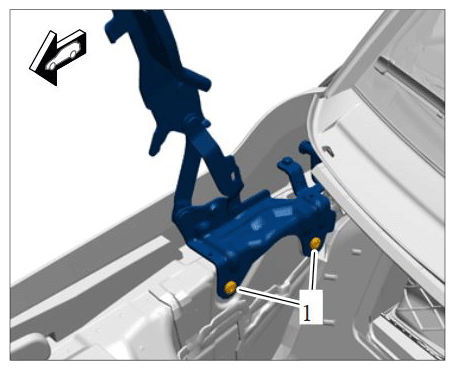

Fastening screws for lid hinge   Tightening torque 20 Nm (15 ftlb.)
G11977843Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing lid hinge

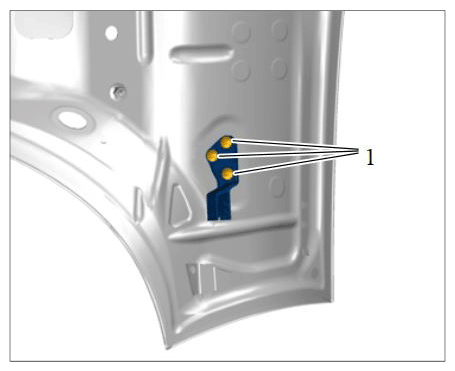

Fastening screw for rubber stop, rear   Tightening torque 8 Nm (6 ftlb.)
G11977844Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear lock

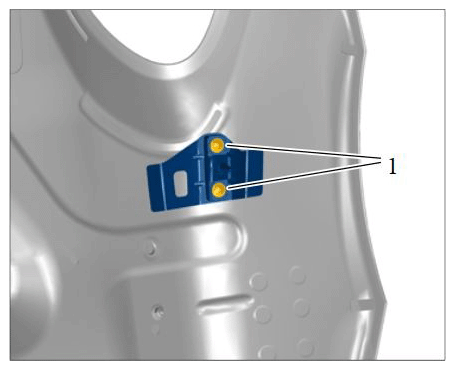

Fastening screw for guide plate   Tightening torque 8 Nm (6 ftlb.)
G11977845Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide plate

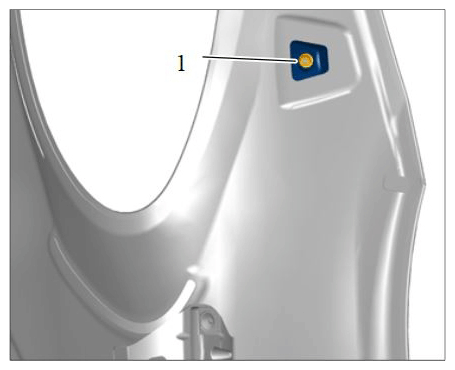

Fastening nut for front lock   Tightening torque 8 Nm (6 ftlb.)
G11977846Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front lock

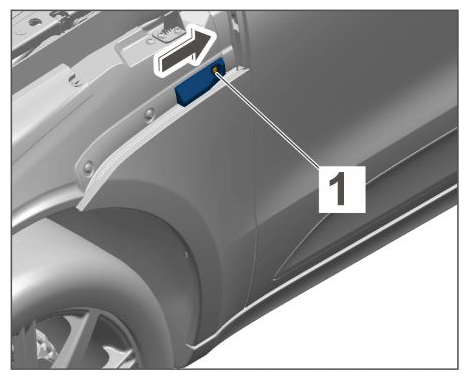

Fastening screws for guide wedge Item 1 Tightening torque 8 Nm (6 ftlb.)
G11977847Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide wedge

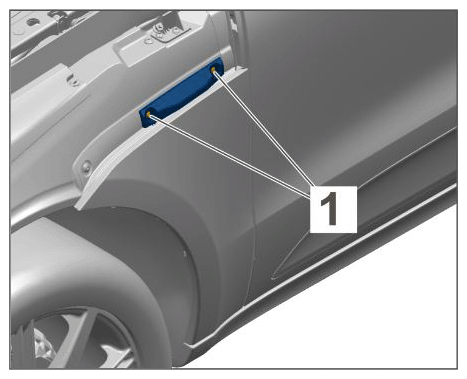

Fastening screw for guide wedge (retrofitted) Item 1 Tightening torque 8 Nm (6 ftlb.)
G11977848Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide wedge (retrofitted)
Fastening screw for outer wing   Tightening torque 10 Nm (7.5 ftlb.)

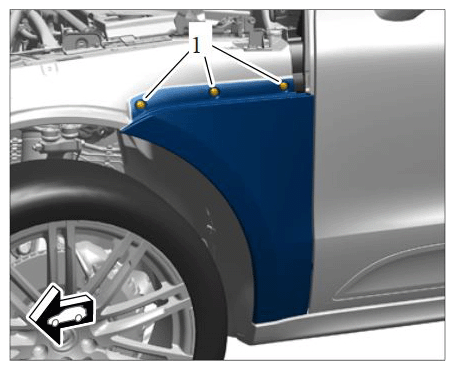

G11977849Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for outer wing

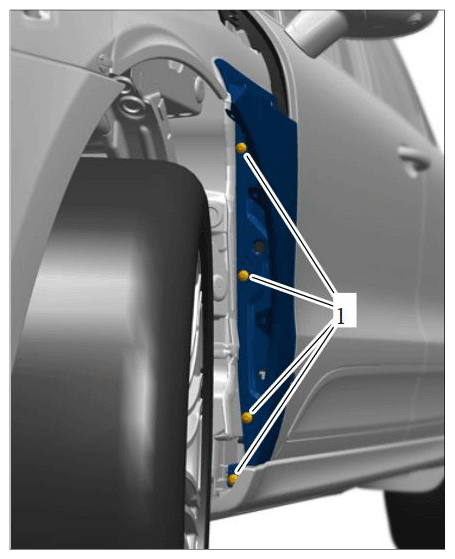

Fastening screw for inner wing   Tightening torque 10 Nm (7.5 ftlb.)
G11977850Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for inner wing

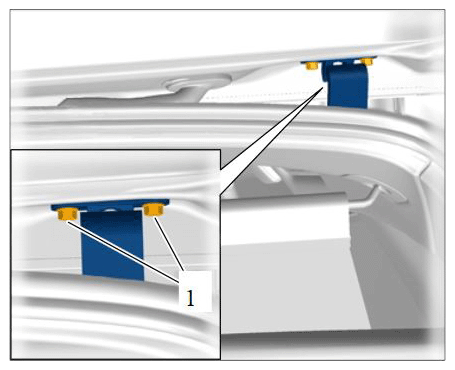

Fastening screw for lid hinge   Tightening torque 10 Nm (7.5 ftlb.)
G11977851Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear lid hinge
Fastening nut for lid hinge (on body side)   Tightening torque 23 Nm (17 ftlb.)

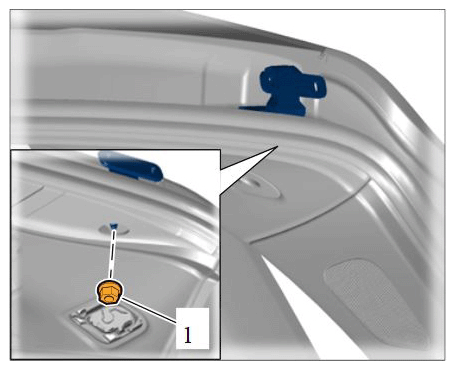

G11977852Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hinge on body side
Fastening screw for lower part of lid lock   Tightening torque 18 Nm (13 ftlb.)

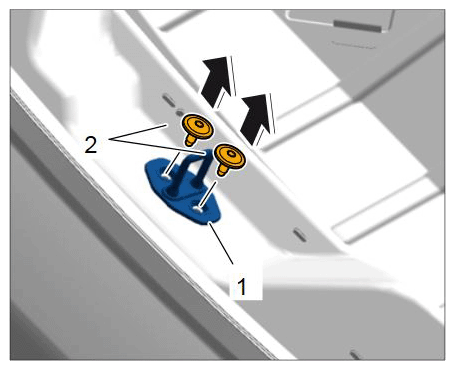

G11977853Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing lower part of lid lock

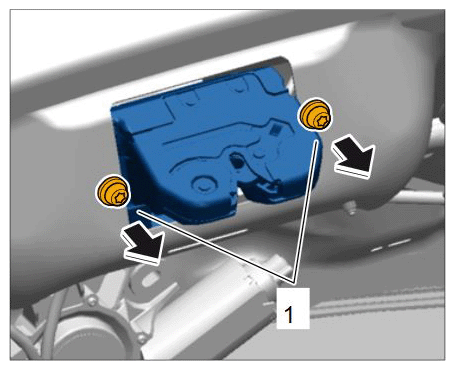

Fastening screw for upper part of lid lock   Tightening torque 8 Nm (6 ftlb.) Torque angle 45°
G11977854Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing fastening screws

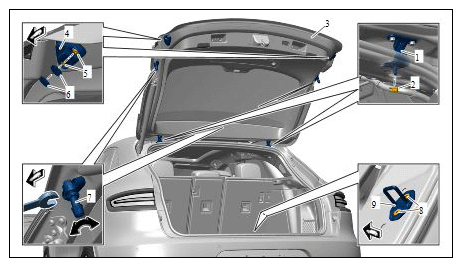

Fastening screw for lid adjusting element, side Item 6 Tightening torque 8 Nm (6 ftlb.)
G11977855Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjusting rear lid
Fastening screw for door handle   Tightening torque 2.5 Nm (2 ftlb.)

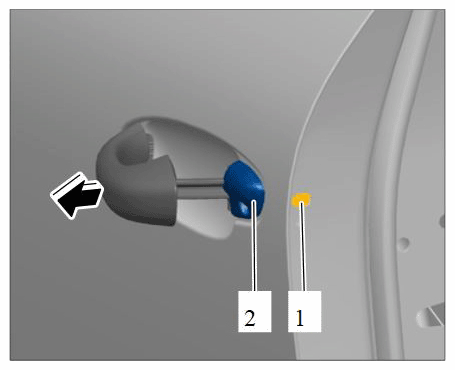

G11977856Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening door handle

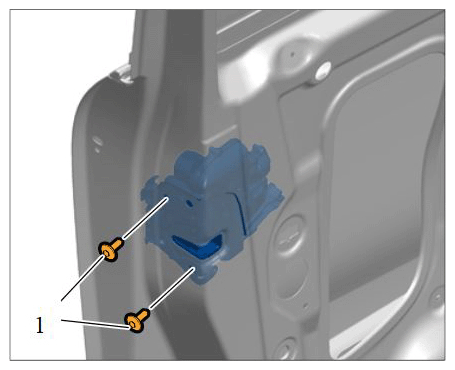

Fastening screw for door lock   Tightening torque 20 Nm (15 ftlb.)
G11977857Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing fastening screws
Fastening screw for door arrester   Tightening torque 33 Nm (24 ftlb.)
G11977858Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing fastening screw on door arrester
Fastening screw for door arrester Item 2 Tightening torque 8 Nm (6 ftlb.)
G11977859Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing fastening screws for door
Fastening screw for hinge   Tightening torque 27 Nm (20 ftlb.) +/-3.5 Nm (+/-2.5 ftlb.)
G11977860Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening fastening screws for hinge connection
Fastening screw for lock peg (striker pin)   Tightening torque 25 Nm (19 ftlb.)
G11977861Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing lock peg

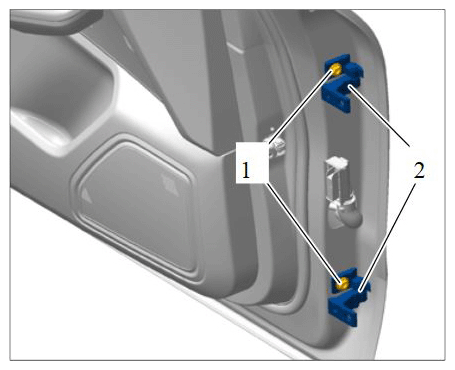

Fastening screw securing hinge to front door   Tightening torque 55 Nm (41 ftlb.)
G11977862Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front door hinge

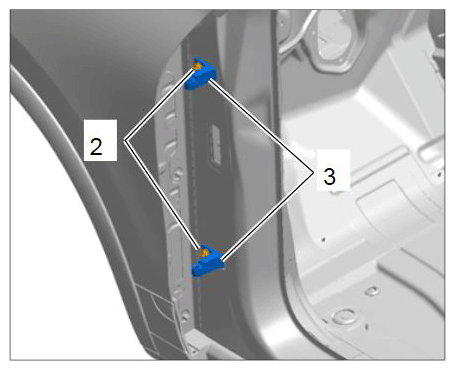

Door hinge to outer A-pillar   Tightening torque 50 Nm (37 ftlb.)
G11977863Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening rear door hinge on body side at the outs

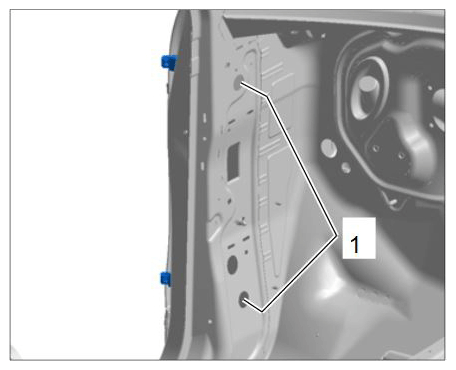

Door hinge to inner A-pillar   Tightening torque 50 Nm (37 ftlb.)
G11977864Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening rear door hinge on body side at the ins,

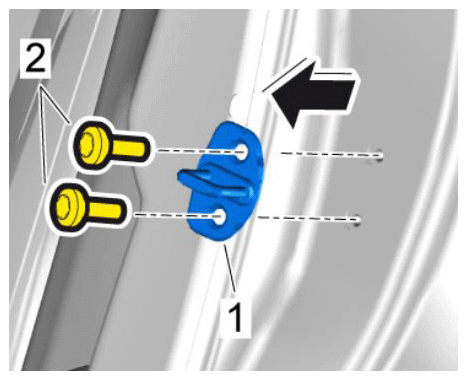

Fastening screw for lock peg (striker pin)   Tightening torque 25 Nm (19 ftlb.)
G11977865Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing lock peg

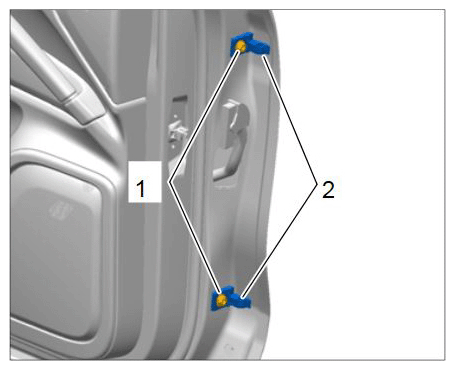

Fastening screw securing door hinge to rear door   Tightening torque 55 Nm (41 ftlb.)
G11977866Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear door hinge on door side
Fastening screw securing door hinge to B-pillar   Tightening torque 50 Nm (37 ftlb.)

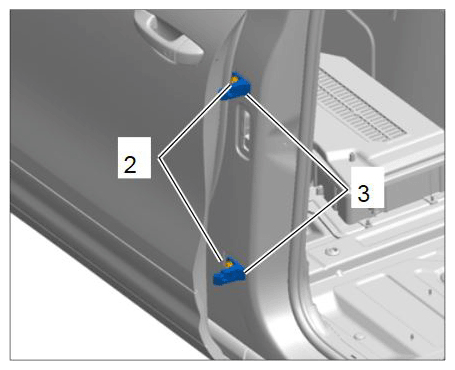

G11977867Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for rear door hinge on body side at the outside

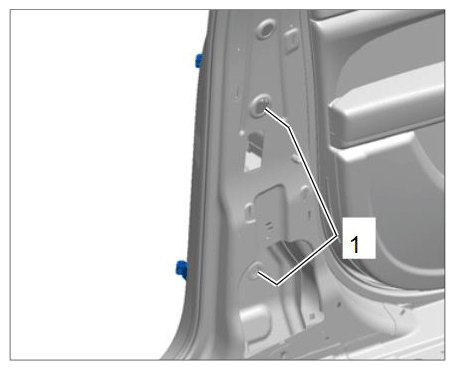

Fastening screw securing door hinge to inner B-pillar   Tightening torque 50 Nm (37 ftlb.)
G11977868Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for rear door hinge on body side at the inside
Fastening screw for door arrester   Tightening torque 33 Nm (24 ftlb.)

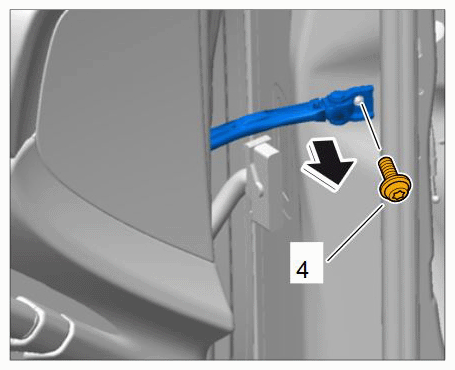

G11977869Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing fastening screw on door arrester

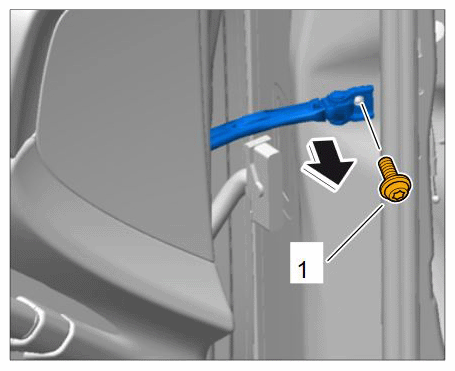

Fastening screw for door arrester Item 1 Tightening torque 33 Nm (24 ftlb.)
G11977870Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing fastening screw at the body

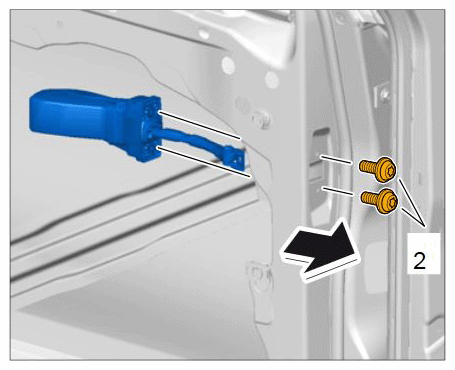

Fastening screw for door stay Item 2 Tightening torque 8 Nm (6 ftlb.)
G11977871Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing fastening screws for door

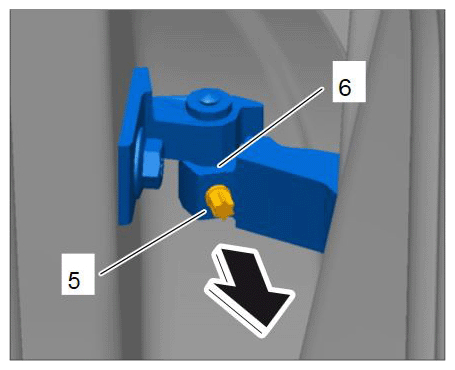

Fastening screw for hinge   Tightening torque 27 Nm (20 ftlb.) +/-3.5 Nm (+/-2.5 ftlb.)
G11977872Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening fastening screws for hinge connection

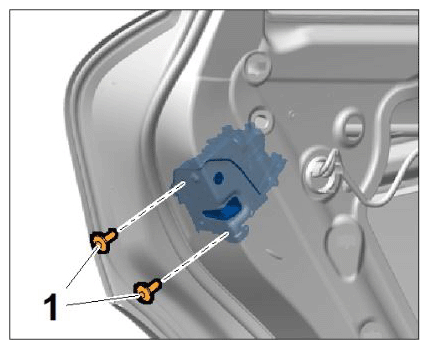

Fastening screw for rear door lock   Tightening torque 20 Nm (15 ftlb.)
G11977873Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for door lock
