Making Ground Connection Using A Through Bolt

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

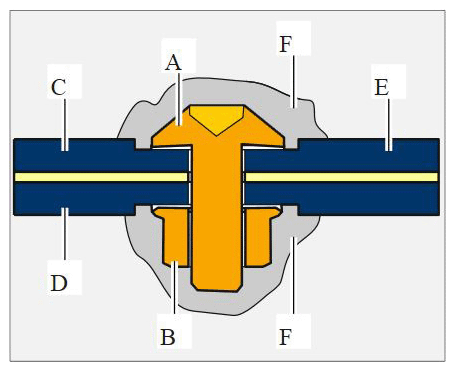

G11977687Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. → COUNTERSUNK SCREW 999.073.549.01
  2. → HEXAGON NUT 900.377.003.01
  3. Component 1
  4. Component 2
  5. Adhesive
  6. Sealing compound
  1. Drill a hole. → Diameter: 4 mm

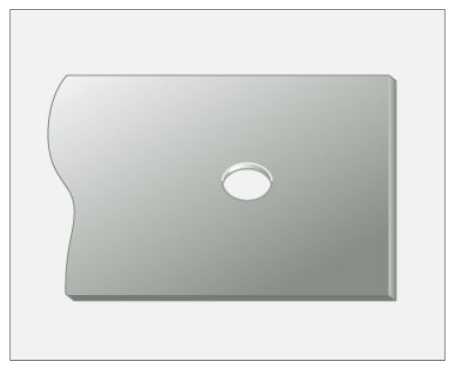

    G11977688Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Drilling hole

  2. Remove dirt and primer on both sides using an end brush end brush 9399/3  .

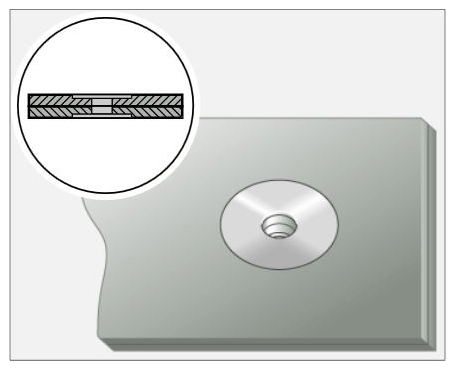

    G11977689Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing primer

  3. Drill out the bore. → Diameter: 8 mm

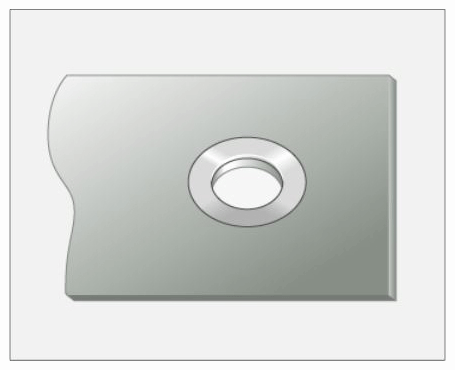

    G11977690Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Drilling out bore

  4. De-burr the bore on both sides.
  5. Fit countersunk screw through the bore and secure it with a hexagon nut.→ COUNTERSUNK SCREW 999.073.549.01 → HEXAGON NUT 900.377.003.01
  6. Tighten threaded joint to the specified torque. → Tightening torque: 15 Nm (11 ftlb.)
  7. Seal threaded joint.
