Making Ground Connection Using A Rivet Nut

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Drill a hole. → Diameter: 4 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

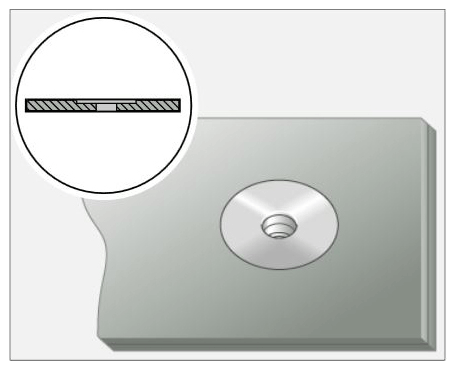

Drilling hole
Remove dirt and primer using an end brush end brush 9399/3.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

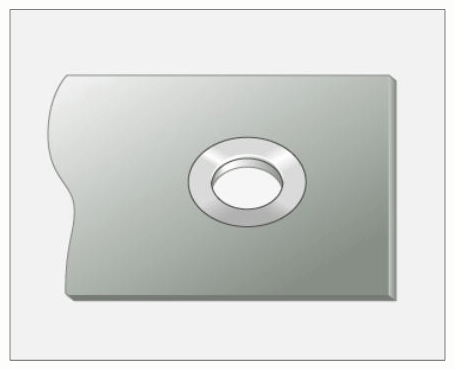

Removing primer
Drill out the bore. → Diameter: 11 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

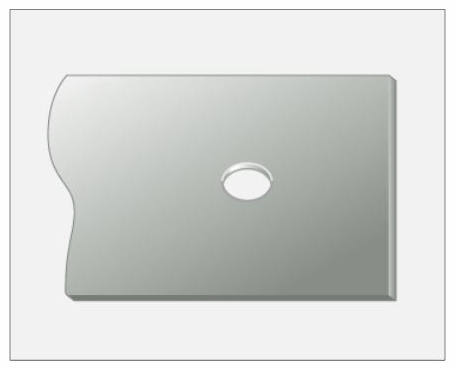

Drilling out bore
De-burr the bore on both sides.
Fit and tighten blind rivet nut. → BLIND RIVET NUT 999.500.196.01 Pop rivet nut pliers - V.A.G 1765 C WE 1476

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

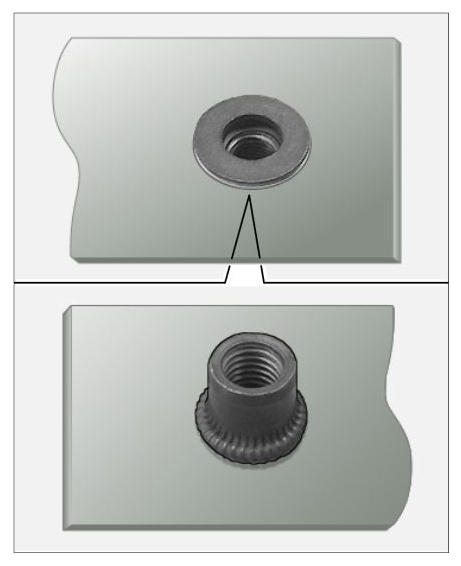

Tightening blind rivets
Screw on components using a countersunk screw.→ COUNTERSUNK SCREW 999.073.549.01
Tighten threaded joint to the specified torque. → Tightening torque: 15 Nm (11 ftlb.)
