Unpainted BODYSHELL

→ Body apertures that are sealed with stoppers at the factory must be re-sealed with the stoppers provided following disassembly or repair work.

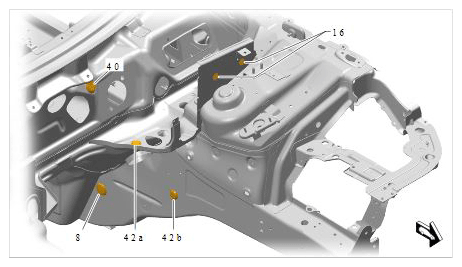

Fig 1: Front Side Member/Plenum Panel Stopper Locations

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 8  - Front side member, left & right (2x)
2. 16  - Plenum panel, left side (2x)
3. 40  - Firewall, left only (1x)
4. 42a  - Lower part of plenum panel, left (1x)
5. 42b  - Front side member, left & right (2x)

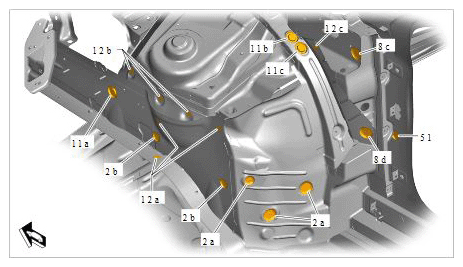

Fig 2: Outer Front Side Member/A-Pillar/A-Pillar Reinforcement Stopper Locations

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 2a  - Wheel arch extension, left & right (2x)
2. 2b  - Closing element, left & right (4x)
3. 8a  - Wheel arch extension, left & right (4x)
4. 8c  - Reinforcement, left & right (2x)
5. 8d  - Upper closing element, left & right (2x)
6. 11a  - Closing element, left (2x)
7. 11b  - Closing element for A-pillar node, left & right (2x)
8. 11c  - Closing element for A-pillar node, left (2x)
9. 12a  - Closing element, left & right (6x)
10. 12b  - Spring strut mount, left & right (6x)
11. 12c  - Closing element for A-pillar node, left & right (2x)
12. 51  - Outer side panel (2x)

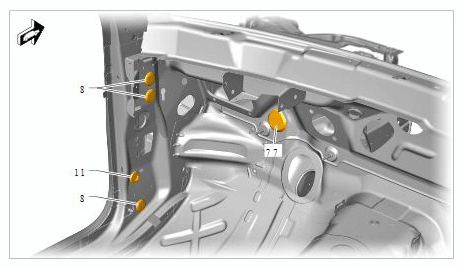

Fig 3: Inner A-Pillar/Front Panel Stopper Locations

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 8  - Inner A-pillar, left & right (6x)
2. 11  - Inner A-pillar, left & right (2x)
3. 77  - Firewall (LHD vehicles only) (1x)

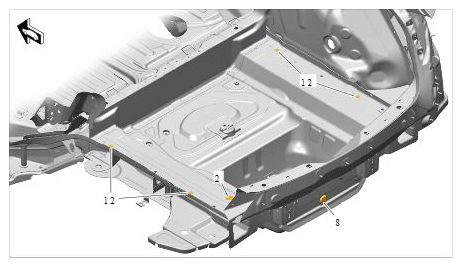

Fig 4: Rear Closing Panel/Boot Floor Plate Stopper Locations

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 2  - Floor, rear left (1x)
2. 8  - Transverse lock support (1x)
3. 12  - Longitudinal member extension, left & right (4x)

Information:  Do not install stoppers until after you have applied wax.

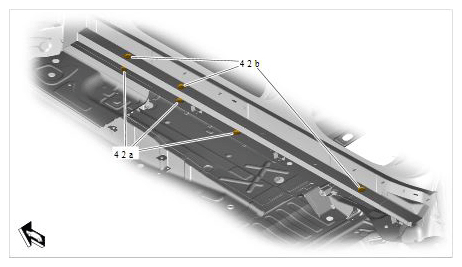

Fig 5: Underbody/Side Member Stopper Locations

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 42a  - Inner side member, left & right (6x)
2. 42b  - Side member reinforcement, left & right (6x)

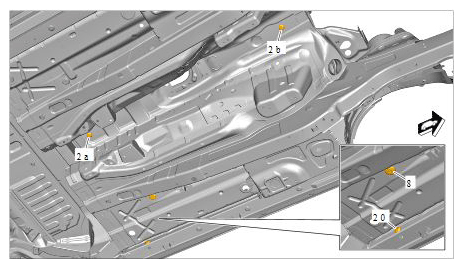

Fig 6: Floorpan/Tunnel Stopper Locations

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 2a  - Tunnel insert (1x)
2. 2b  - Tunnel insert (1x)
3. 8  - Front floor section, left & right (2x)
4. 20  - Inner side member, left & right (2x)

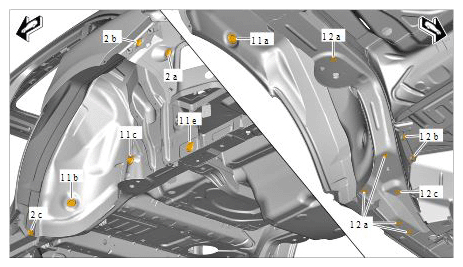

Fig 7: Rear Side Member/Rear Wheel Housing Stopper Locations

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 2a  - Bumper holder, left & right (2x)
2. 2b  - Outer side panel, left & right (2x)
3. 2c  - Outer rear wheel housing, left & right (2x)
4. 11a  - Outer rear wheel housing, left & right (2x)
5. 11b  - Inner rear wheel housing, left & right (2x)
6. 11c  - Rear wheel housing closing element, left & right (2x)
7. 11e  - Inner rear wheel housing, left & right (2x)
8. 12a  - Rear side member, left & right (10x)
9. 12b  - Floor reinforcement, left only (2x)
10. 12c  - Rear side member, left (1x)

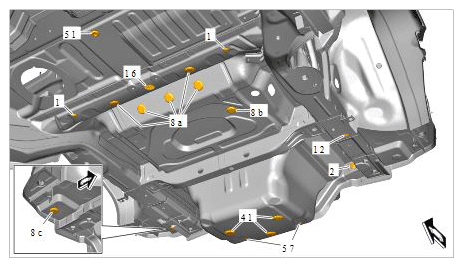

Fig 8: Rear Floor/Battery Console/Rear Side Member Stopper Locations

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 1  - Connecting piece (2x)
2. 2  - Holder, left & right (2x)
3. 8a  - Centre part of cross member (5x)
4. 8b  - Floor, rear (1x)
5. 8c  - Floor, right (1x)
6. 12  - Longitudinal member, left (1x)
7. 16  - Centre part of cross member (1 x)
8. 41  - Battery console (3x)
9. 51  - Floor, rear (1x)
10. 57  - Battery console (2x)

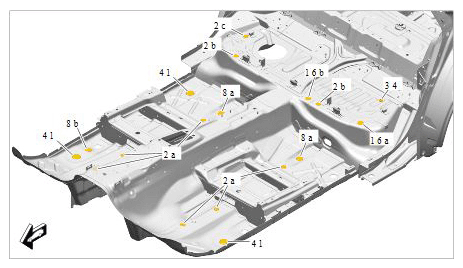

Fig 9: Floorpan Stopper Locations

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 2a  - Front & rear floor section, left & right (6x)
2. 2b  - Floor end section (2x)
3. 2c  - Front & rear floor section, right only (1x)
4. 8a  - Front floor section, left & right (2x)
5. 8b  - Front floor section, right (1x)
6. 16a  - Floor end section, left only (1x)
7. 16b  - Closing element, left only (1x)
8. 34  - Rear floor section, left only (1x)
9. 41  - Front floor section, left (1x) & right (2x)

Model year as of 2014, Model year up to 2020
