Installing rear lid seal
WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Place rear lid seal in installation position.

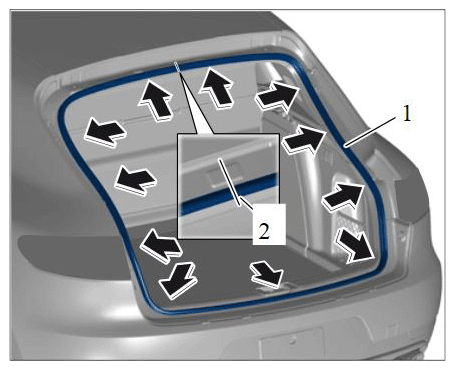

Installing rear lid seal
- 1.1. Position marking on the seal -2- at the centre of the vehicle.
- 1.2. Fit seal with the vent holes facing outwards on the sheetmetal flange.
- Press rear lid seal -1- onto the sheetmetal flange.
- Check that the seal is fitted securely and is flush, especially in the rounded areas.
95BAA1, 95BAB1, 95BAC1, 95BAD1, 95BAF1, 95BAJ1, 95BAK1, 95BAS1, 95BAX1, 95BAY1, 95BAZ1
Model year as of 2014
C00, C02, C05, C06, C07, C08, C09, C10, C11, C12, C13, C14, C15, C16, C17, C18, C19, C20, C21, C22, C23, C24, C25, C26, C27, C28, C32, C33, C34, C35, C36, C37, C38, C39, C41, C45, C45, C46, C96, C97, C98, C99
