Technical values
WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

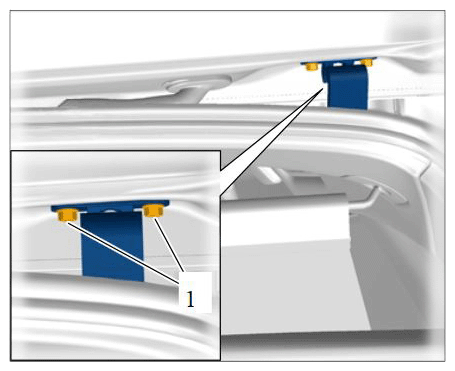

| Fastening screw for lid hinge |
|
Tightening torque |
10 Nm (7.5 ftlb.) |
|
|
Rear lid hinge |

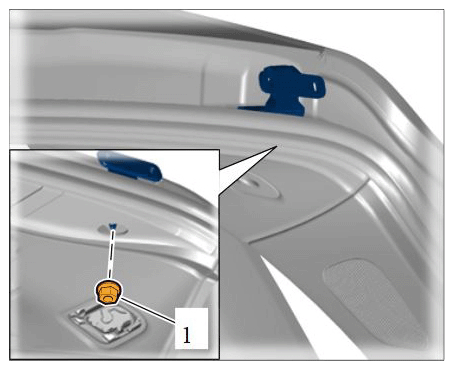

| Fastening nut for lid hinge (on body side) |
|
Tightening torque |
23 Nm (17 ftlb.) |
|
|
Hinge on body side |
