Technical values
WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

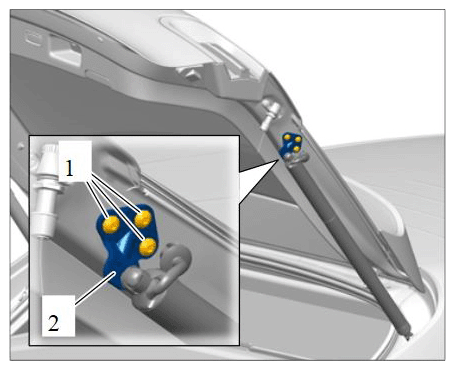

| Mounting for gas-filled shock absorber holder/actuating cylinder | Tightening torque | 10 Nm (7.5 ftlb.) | |||
|
Bracket for gas-filled shock absorber |
|||||

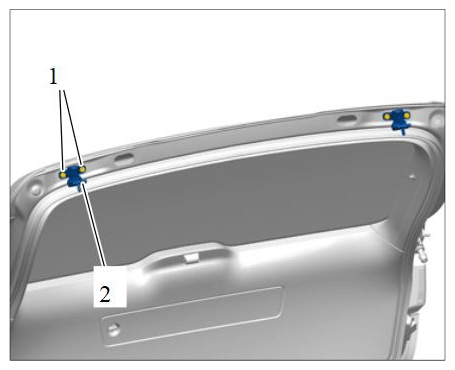

| Fastening screw for tailgate hinge | Tightening torque | 10 Nm (7.5 ftlb.) | |||
|
Tailgate hinge mounting |
|||||

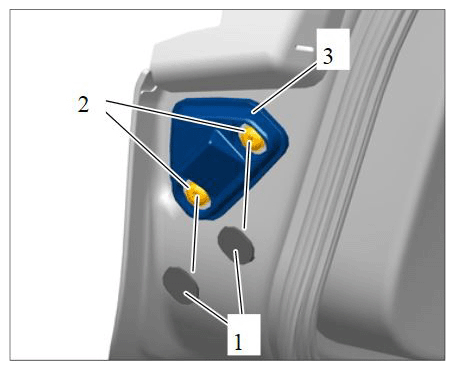

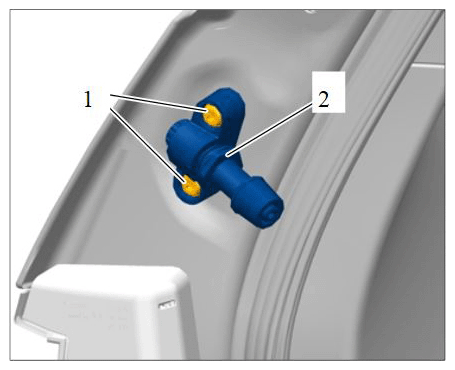

| Fastening screw for adjusting element | Tightening torque | 8 Nm (6 ftlb.) | |||
|
Adjusting element mounting |
|||||
| Fastening screw for guide wedge | Tightening torque | 6 Nm (4.5 ftlb.) | |||
|
Removing guide wedge |
|||||
