Technical values: Overview
WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening screw for tailgate hinge | Tightening torque | 10 Nm (7.5 ftlb.) | |||
|

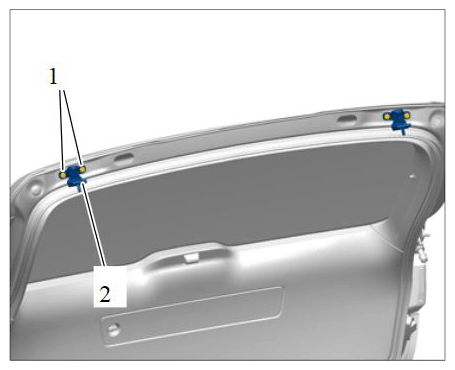

Tailgate hinge mounting |
|||||
| Fastening screw for guide wedge | Tightening torque | 6 Nm (4.5 ftlb.) | |||
|

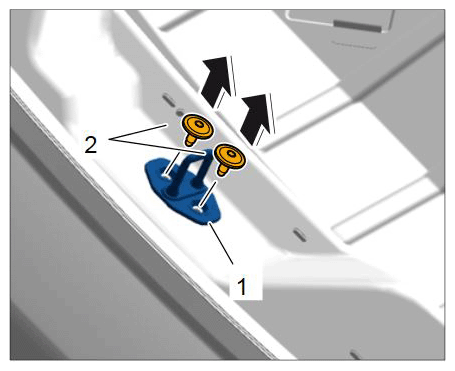

Removing guide wedge |
|||||
| Fastening nut for lid hinge (on body side) | Tightening torque | 23 Nm (17 ftlb.) | |||
|

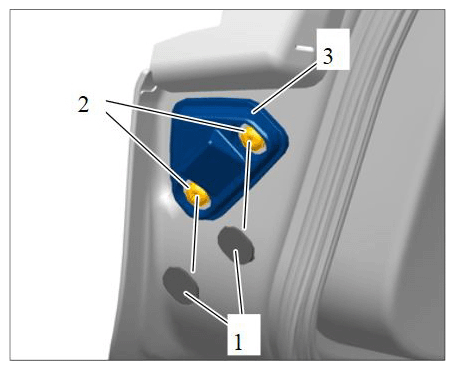

Hinge on body side |
|||||
| Fastening screw for lower part of lid lock | Tightening torque | 18 Nm (13 ftlb.) | |||
|

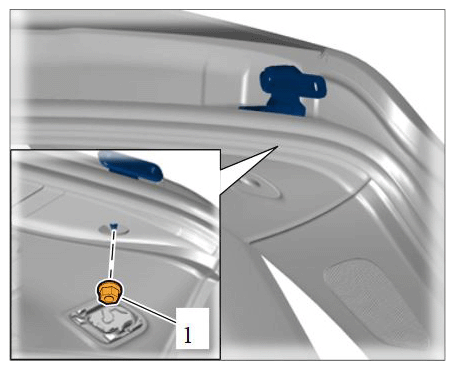

Removing lower part of lid lock |
|||||
