Gap dimensions - 55 - Rear lid
WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

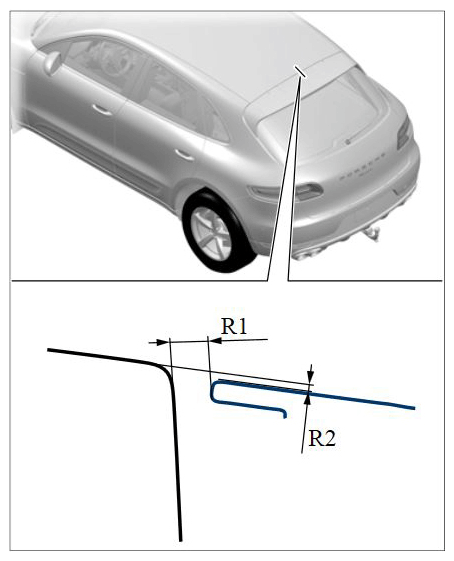

| Rear lid/rear spoiler to roof | R1 (gap) | Gap dimension | 6 mm | +/-1.1 mm | |
|
Rear lid/rear spoiler |
|||||
| Rear lid/rear spoiler to roof | R2 (offset) | Gap dimension | -1.5 mm | +/-1.1 mm | |
|
Rear lid/rear spoiler to roof |
|||||

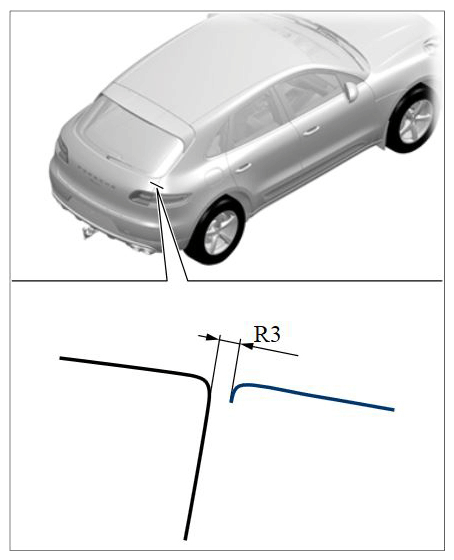

| Rear lid to side panel | R3 (gap) | Gap dimension | 4 mm | +0.7 mm | -0.9 mm |
|
Rear lid to side panel |
|||||
| Rear lid to side panel | R3b (offset) | Gap dimension | 0 mm | +/-0.6 mm | |
|
Rear lid to side panel |
|||||

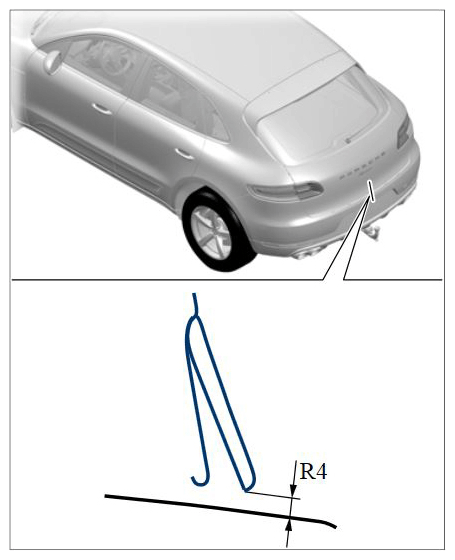

| Rear lid to rear apron | R4 (gap) | Gap dimension | 4 mm | +/-0.8 mm | |
Rear lid to rear apron
