Removing upper part of rear lid lock

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Electrically moved components
  • Danger of limbs being trapped or severed

→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

NOTE: Voltage peaks
  • Risk of damage to electrical load or to the control unit

→ Switch off ignition and remove remote control before disconnecting or removing electrical load.

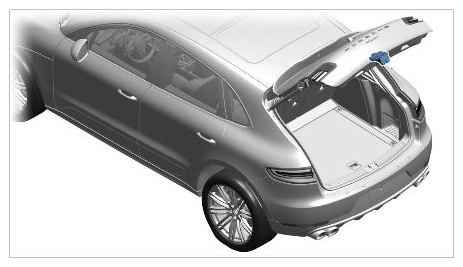

G11983991

Installation position of upper part of lid lock

  1. Release and unplug electric plug connections -1-  .

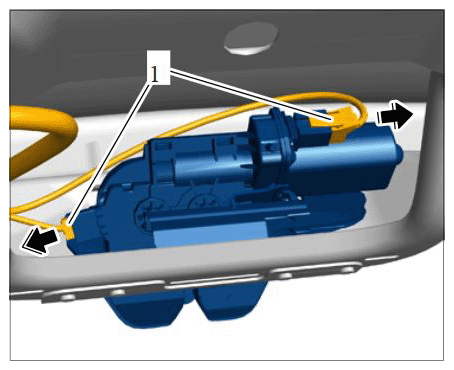

    G11983992

    Electric plug connection

  2. Unscrew and remove fastening screws -1-  for upper part of rear lid lock.

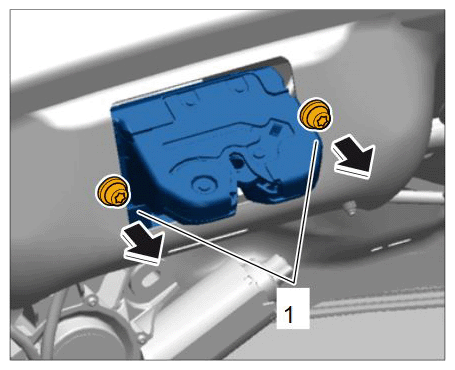

    G11983993

    Loosening upper part of lid lock

  3. Remove upper part of lid lock from the rear lid.
