Removing lower part of rear lid lock

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mark installation position of lower part of rear lid lock -1-  .

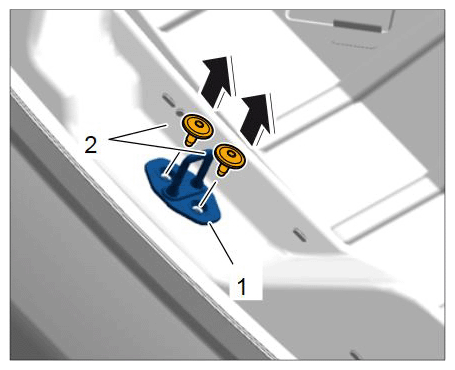

    G11983989

    Removing lower part of lid lock

  2. Unscrew fastening screws -2-  for lower part of lid lock -1-  .
  3. Remove lower part of lid lock by pulling it up.
