Removing microswitch for front lid lock

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disengage locking mechanism -a-  and pull microswitch -1-  out of the front lid lock -2-  .
    G11983986

    Removing microswitch

  2. Release electric plug connection -1-  (-a-  ) and slide it down off the retaining clip -A-  .
  3. Release and disconnect electric plug connection.

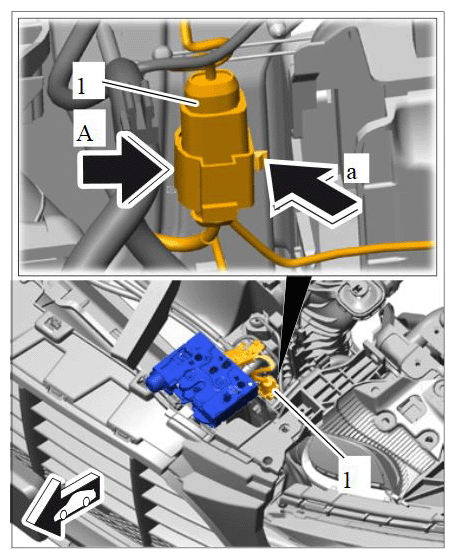

    G11983987

    Disconnecting electric plug connection
