Removing rear lid release

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release and disconnect electric plug connection
  2. Remove rear lid release.

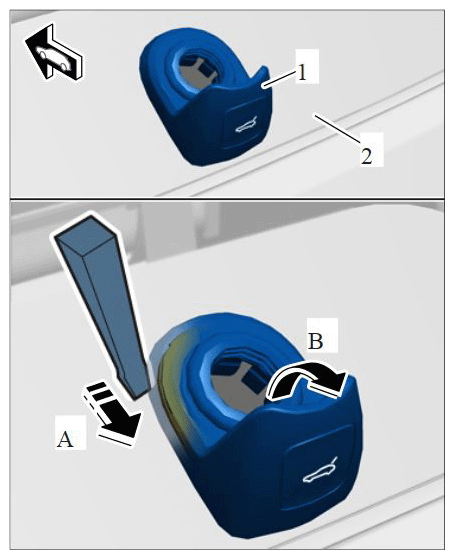

    G11983968

    Removing release switch

    1. 2.1. At the outer edge of the release switch, insert a plastic wedge no deeper than 2.5 mm  between the release switch -1-  and rear window -2-  as shown -arrow A-  .
    2. 2.2. Push the plastic wedge straight down and unclip the release switch from the retainer plate -arrow B-  .

Do not use force on the retainer plate.
