Removing filler flap: Notes

Information

The filler flap (module) will be damaged during removal and must be replaced during installation.

1. Open the filler flap.
2. Remove filler flap.

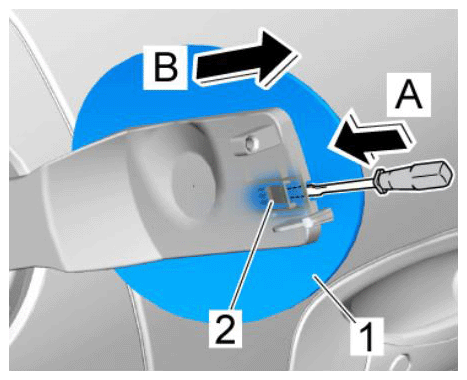

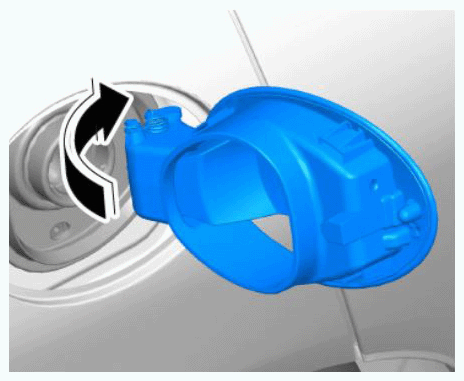

   Pulling off filler flap (similar illustration)

   1. 2.1. Insert a screwdriver into the cut-out -arrow A-  and disengage the catch -2-  .
   2. 2.2. Detach filler flap -1-  by pulling it -arrow B-  out of the catch.

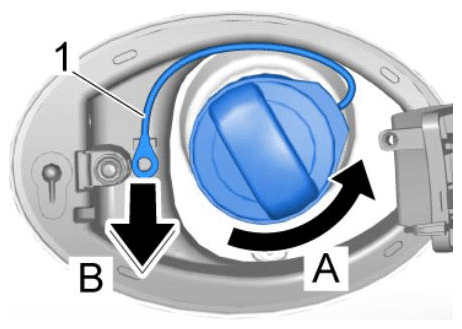

3. Open the fuel tank cap -arrow A-  , unclip the retaining strap -1-  and pull it off -arrow B-  .

   Fuel tank cap (similar illustration)

4. Open luggage compartment trim at the right.

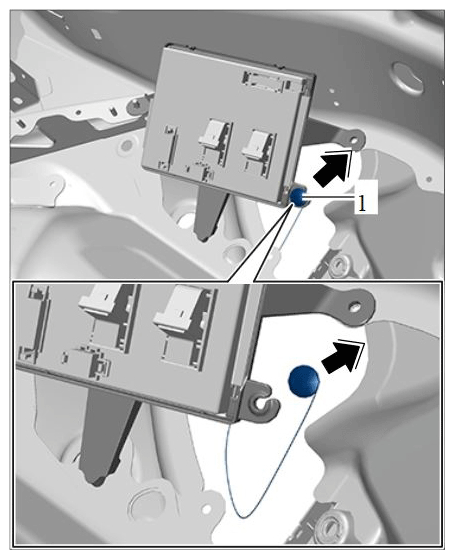

5. Unhook emergency release button -1-  .

   Unhooking emergency release button -1-

6. Guide out operating cable.

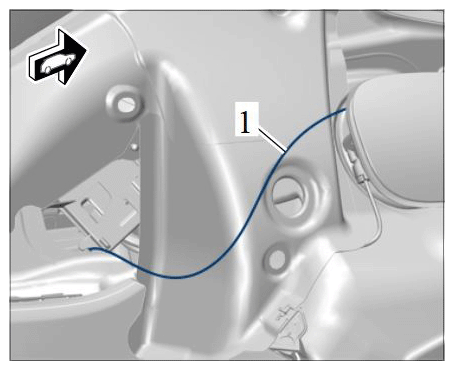

   Emergency release for operating cable

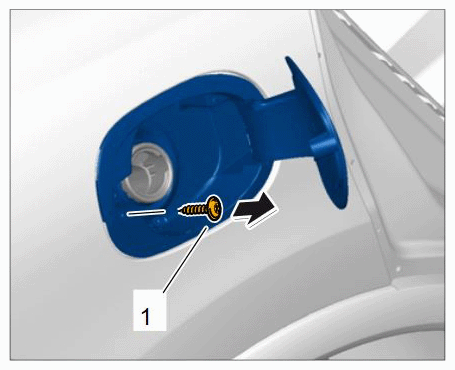

7. Unscrew fastening screw -1-  for filler flap actuator.

   Loosening mounting for filler flap

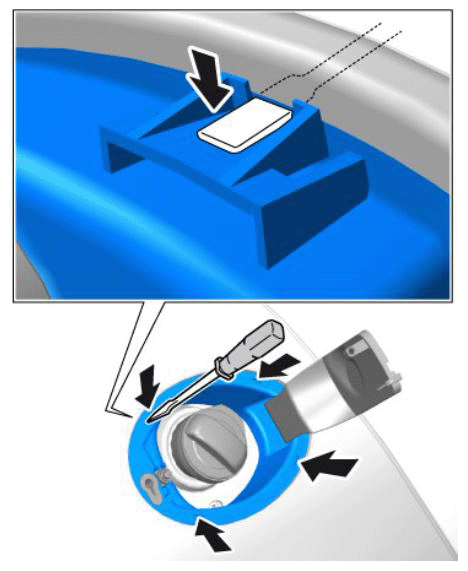

8. Use a screwdriver to puncture all depressions and release the catches -arrow-  .

   Releasing locking lugs

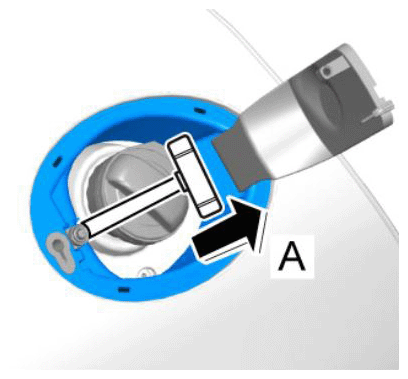

9. Use special tool hook 3370  to pull out the filler flap housing -arrow A-  .

   Pulling off filler flap housing

10. Release electric plug connection and disconnect connector.
11. Guide new filler flap housing -arrow-  into the opening in the body.

    Filler flap housing

12. Guide emergency release cable in through the bodyshell.
13. Connect electric plug connection.
14. Guide emergency release cable through the bodyshell and engage it at the release button.

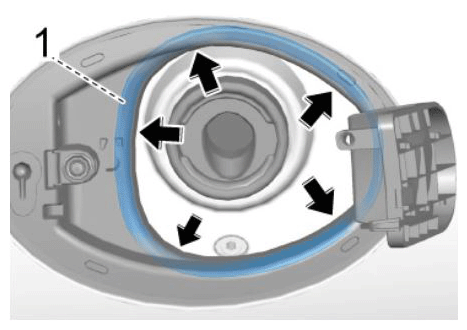

15. Align the filler flap housing so that the rubber lip goes all around the outside of the filler flap housing -arrow-  .

    Fitting filler flap housing

16. Press the filler flap housing against the body until the locking lugs engage securely.

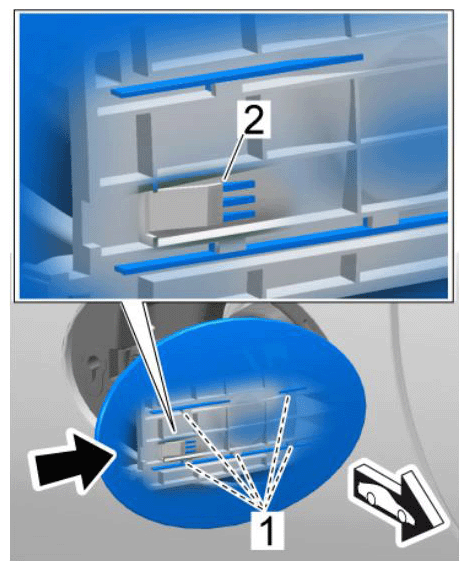

17. Slide on the tank cap -arrow-  so that the retaining lugs -1-  lock into the holders and engage with an audible click in the catch -2-  .

    Pushing on tank cap

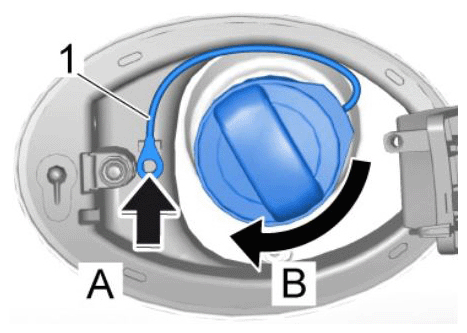

18. Clip in retaining strap -1-  (-arrow A-  ).

    Fitting retaining strap and fuel tank cap

19. Screw in fuel tank cap -arrow B-  .
