Removing front lid seal

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
G11983952

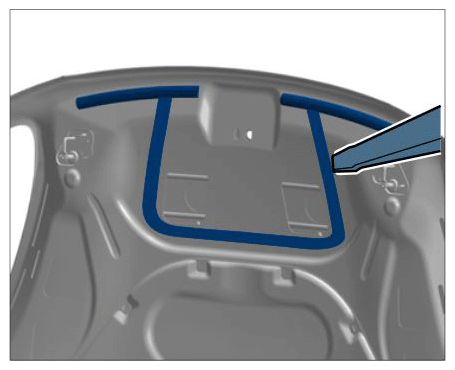

Installation position

  1. Unclip seal at the left and right -1-  using a suitable tool.
    G11983953

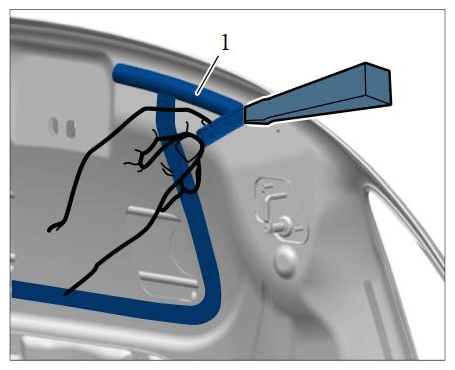

    Side seal

  2. Unclip centre seal -1-  using a suitable tool.
    G11983954

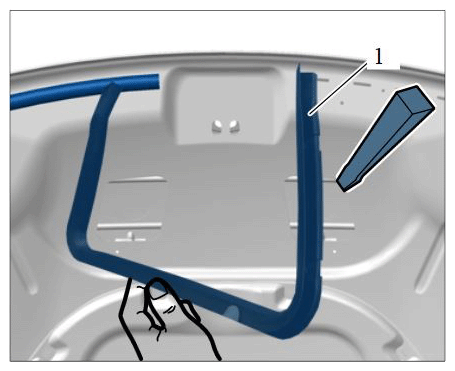

    Centre seal
