Removing front lid hinge

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

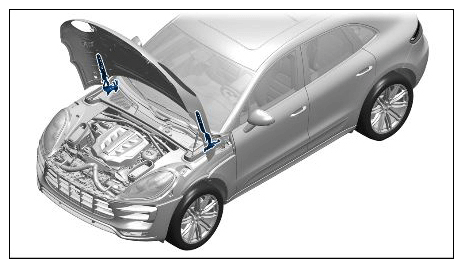

G11983947

Installation position of lid hinge

  1. Unscrew and remove fastening screws -1-  on the lid hinge.

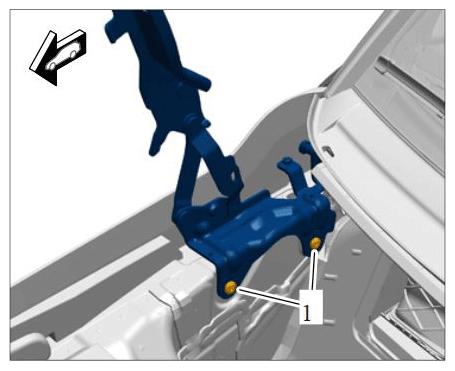

    G11983948

    Removing lid hinge

  2. Remove lid hinge by pulling it up.
