Disassembling front lid

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

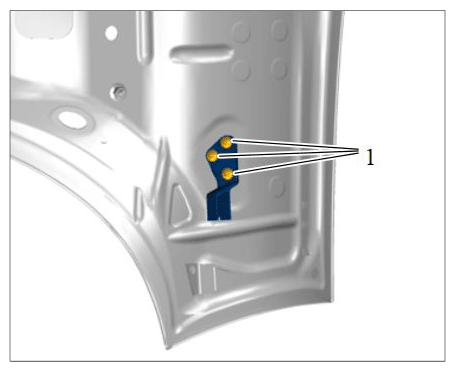

  1. Unscrew and remove fastening screws -1-  on rear rubber stop.
    G11983941

    Rear stop

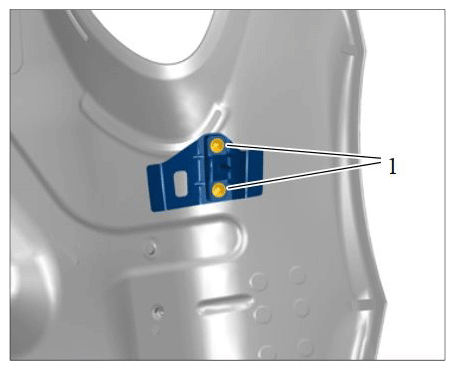

    Unscrew and remove fastening screws -1-  on the guide plate.

    G11983942

    Guide plate

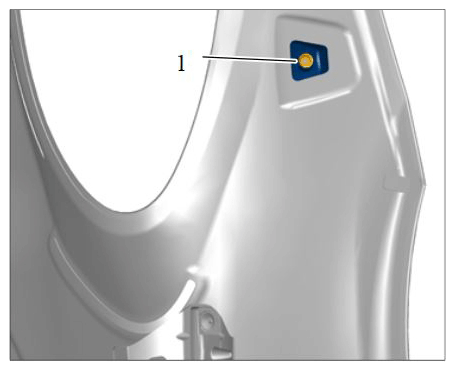

  2. Unscrew and remove fastening nut -1-  on rubber stop.
    G11983943

    Front stop

  3. Remove guide piece.

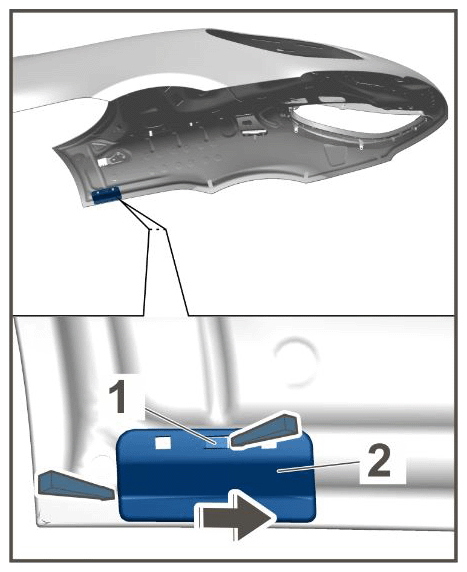

    G11983944

    Removing guide piece

    1. 3.1. Lift locking lug -1-  using a plastic wedge.
    2. 3.2. Lift guide piece -2-  slightly using a plastic wedge in order to loosen the bonded joint.
    3. 3.3. Pull off guide piece. -arrow-
