Technical values

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening nut for front lid   Tightening torque 20 Nm (15 ftlb.)

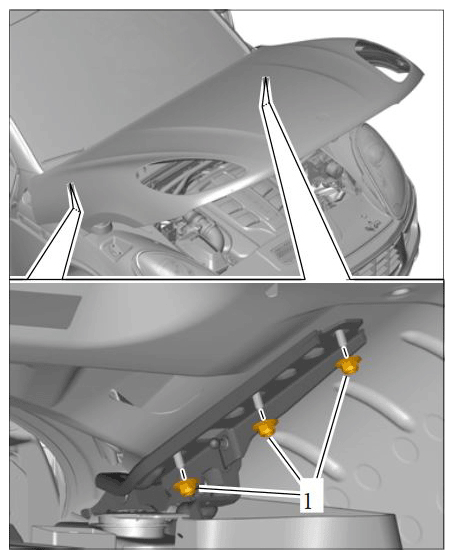

G11983934

Front lid
