Removing front lid
WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
Use a marking pen to mark the position of accessories with respect to each other before removal in order to reduce the amount of adjustment work required for gaps and joints.
Information
- The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment .
- The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant .
- Some steps must be carried out automatically .
- Some of the repair illustrations show only one side of the vehicle .

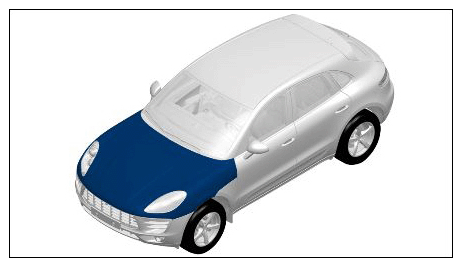

Installation position of lid

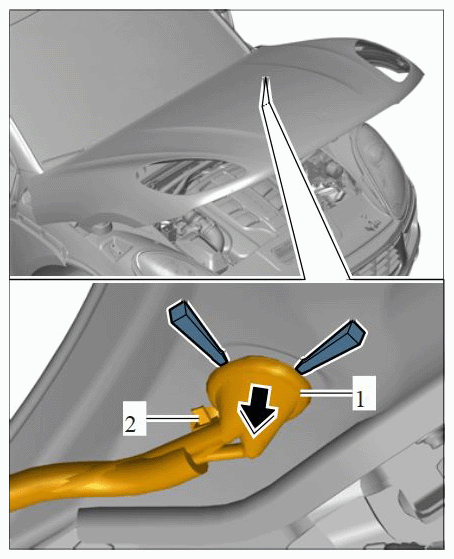

- Pull grommet -1-
for wire harness out of the cut-out.
Wire harness grommet
- 1.1. Unclip fixing clip -2- for wire harness.
- Pull wire harness out of the lid -arrow- .
- A second person should hold the front lid to prevent it from closing accidentally.

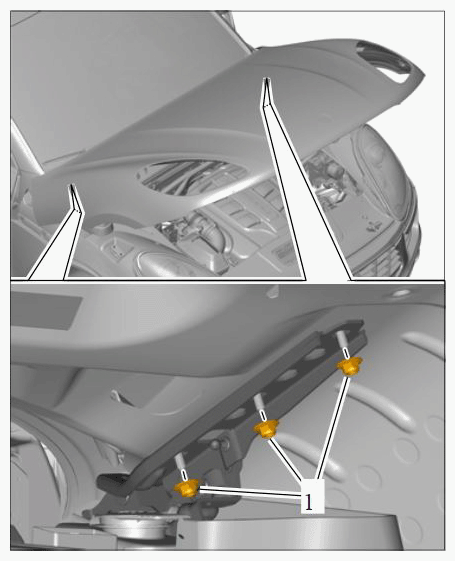

- 3.1. Screw off fastening nuts -1- for the front lid.
Front lid
- Remove front lid.
