Technical values: Overview
WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

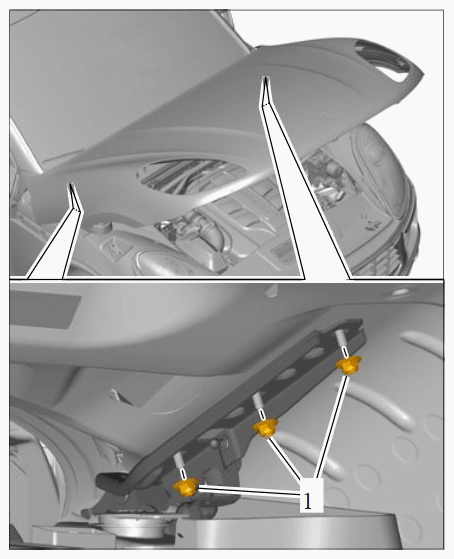

| Fastening nut for front lid | Tightening torque | 20 Nm (15 ftlb.) | |||
|
Front lid |
|||||

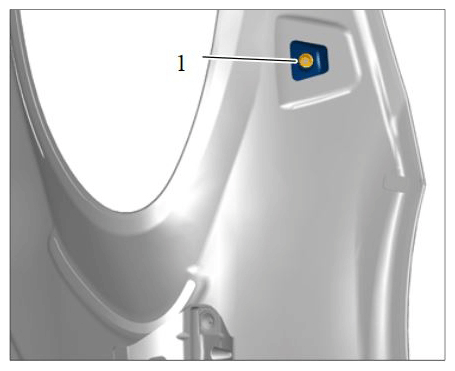

| Fastening screw for upper part of lid lock, front | Tightening torque | 8 Nm (6 ftlb.) | |||
|
Fastening nuts for upper part of lid lock |
|||||

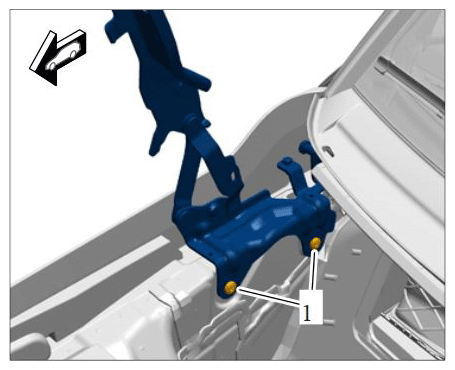

| Fastening screws for lid hinge | Tightening torque | 20 Nm (15 ftlb.) | |||
|
Removing lid hinge |
|||||

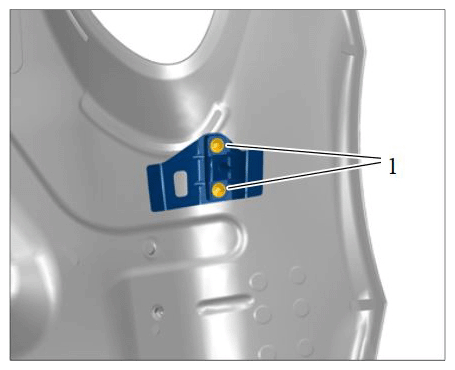

| Fastening screw for guide plate | Tightening torque | 8 Nm (6 ftlb.) | |||
|
Guide plate |
|||||

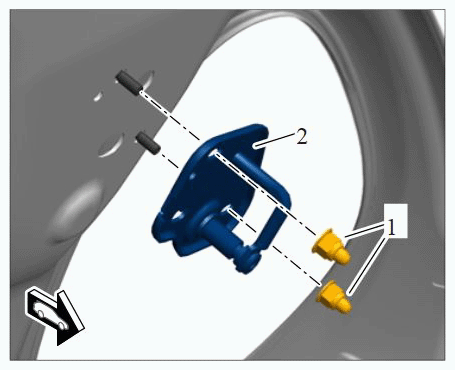

| Fastening nut for front lock | Tightening torque | 8 Nm (6 ftlb.) | |||
|
Front lock |
|||||
