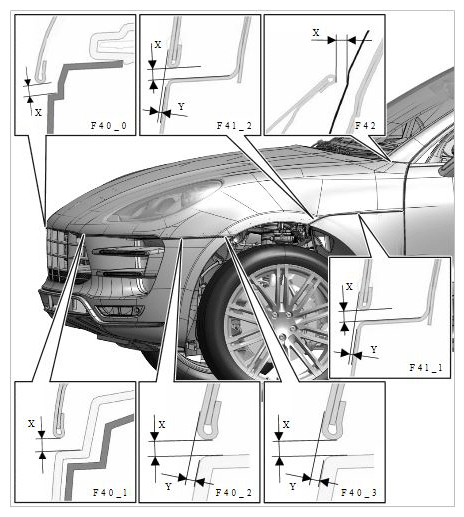

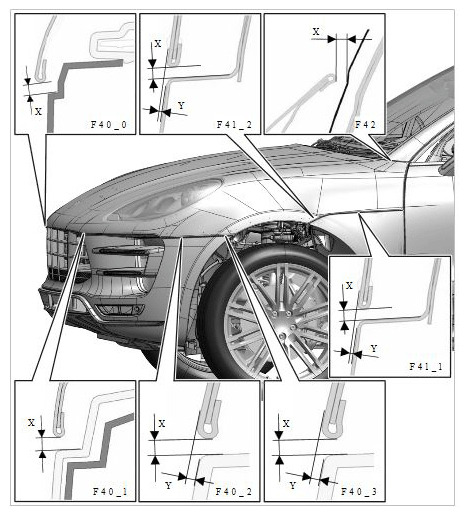

Gap dimensions for body front section

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

F40_0 - → Gap dimension: 4.8 mm+1 mm-0.6 mm

Gap dimensions for body front section

F40_1 - → Gap dimension: 4.8 mm+1 mm-0.6 mm

Gap dimensions for body front section

F40_2 - → Gap dimension: 3.5 mm+/-0.5 mm

Gap dimensions for body front section

F40_2 - → Gap dimension: 1.5 mm

Gap dimensions for body front section

F40_3 - → Gap dimension: 3.5 mm+/-0.5 mm

Gap dimensions for body front section

F40_3 - → Gap dimension: 1 mm

Gap dimensions for body front section

F41_1 - → Gap dimension: 3.5 mm+/-0.5 mm

Gap dimensions for body front section

F41_1 - → Gap dimension: 1 mm

Gap dimensions for body front section

F41_2 - → Gap dimension: 3.5 mm+/-0.5 mm

Gap dimensions for body front section

F41_2 - → Gap dimension: 1.5 mm

Gap dimensions for body front section

F42 - → Gap dimension: 4.5 mm

Gap dimensions for body front section
