Removing upper part of front lid lock

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
G11983902

Installation position

  1. Determine installation position.
    1. 1.1. Determine position of upper part of lock -1-  with respect to the lid according to the impression made at the factory -arrow-  and write it down.
  2. Unscrew fastening nuts -1-  and remove upper part of lid lock -2-  .

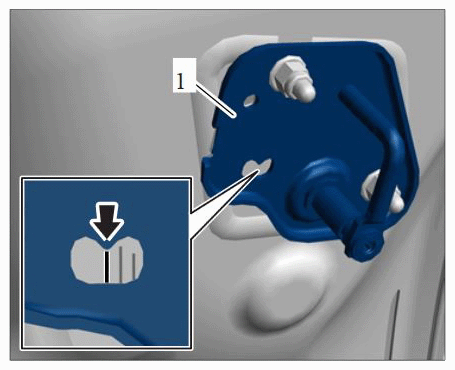

    G11983903

    Position of upper part of lock

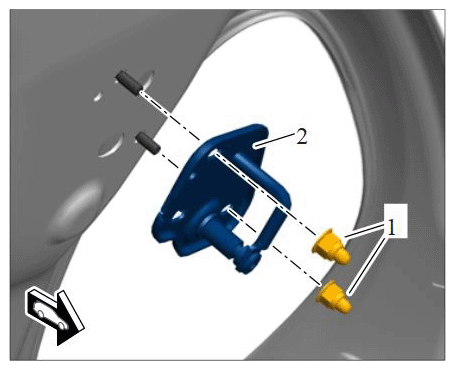

    G11983904

    Fastening nuts on upper part of lid lock
