Removing lower part of lid lock
WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
- The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment .
- The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant .
- Some steps must be carried out automatically .
- Some of the repair illustrations show only one side of the vehicle .
- Remove pressure pipe. (Only if fitted) → 214119 REMOVING AND INSTALLING PRESSURE PIPE

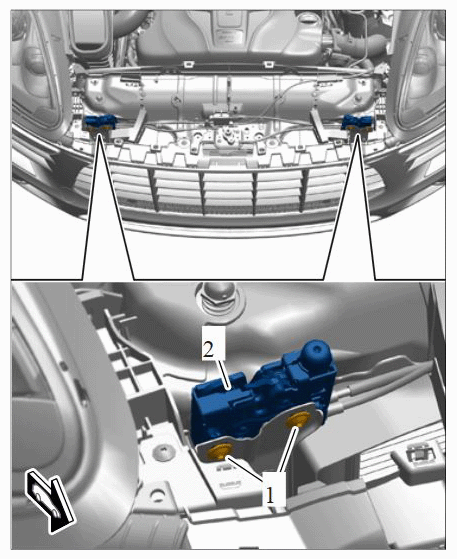

- Unscrew fastening screws -1- securing lower part of lid lock -2- to lock carrier.
- Remove lower part of lid lock -2-
by pulling it up.
Overview of lower part of lid lock

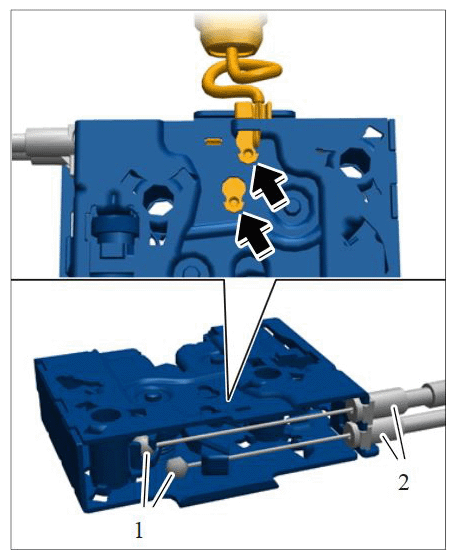

- Unclip microswitch on lower part of lid lock -arrows- .
- Disengage ball joints -1- for the operating cables -2- from lower part of lid lock.
- Unclip operating cables -2- on lower part of lid lock.
- Remove lower part of lid lock.
Detailed view of lower part of lid lock
