Removing front section of lid-lock cable
WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
- The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment .
- The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant .
- Some steps must be carried out automatically .
- Some of the repair illustrations show only one side of the vehicle .

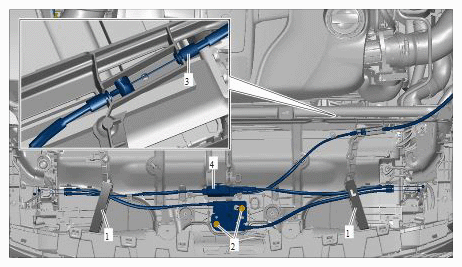

- Remove sound absorbers -1- .
- Unscrew fastening screws -2- and remove release element.
- Unclip operating cable -3- from the bracket and disconnect it.
- Unclip deflection unit -4- on the lock carrier.
- Unclip operating cables on the lock carrier.
- Remove operating cables.
Front cable for front lid lock in engine compartment
