Removing front lid release
WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
- The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment .
- The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant
- Some steps must be carried out automatically .
- Some of the repair illustrations show only one side of the vehicle .

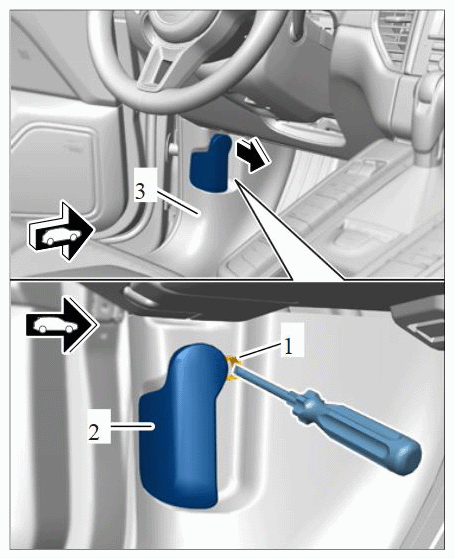

- Remove retaining clip -1- and pull off release handle -2- .
- Remove front inner door sill trim -3-
. → 680519 REMOVING AND INSTALLING FRONT INNER DOOR SILL TRIM
Release handle

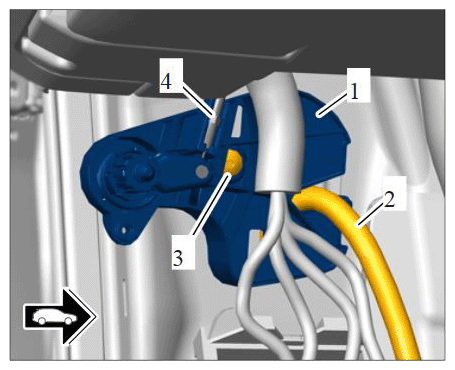

- Unscrew fastening screw -3- .
- Unclip operating cable -4- from the release mechanism -1- and disengage ball joint.
- Unclip release mechanism -1- on the body.
- Disengage wire harness -2- at the release mechanism -1- and remove release mechanism -1- .
Release mechanism
