Removing Right Side Cover For Centre Underbody

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Irritant substances and materials

Itching
Skin irritation

→ Wear personal protective gear.

Unscrew fastening nuts -1- and remove heat shield -5- (only fitted on vehicles with petrol engine).
Unscrew fastening screws -4- and remove side cover at the front -2- .
Unclip side cover at the rear -3- from the underbody and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

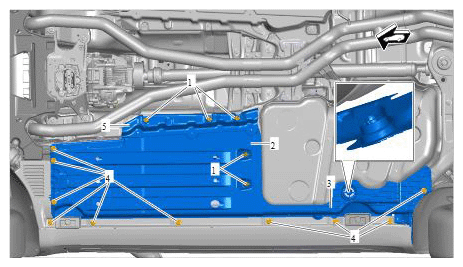

Removing right side cover for centre underbody
