Removing Left Side Cover For Centre Underbody

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Irritant substances and materials

Itching
Skin irritation

Wear personal protective gear.

Unscrew fastening nuts -3- and remove heat shield -4- (only fitted on vehicles with petrol engine).
Unscrew fastening screws -1- and remove side cover -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

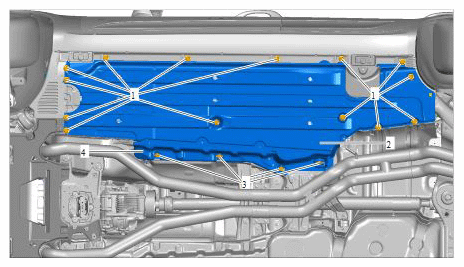

Left side cover for centre underbody
