Removing Side Cover For Front Underbody
WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Press release -arrow-
and disconnect hose for headlight ventilation -3-
.
- Unscrew fastening screws -2-
and remove side cover at the front -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

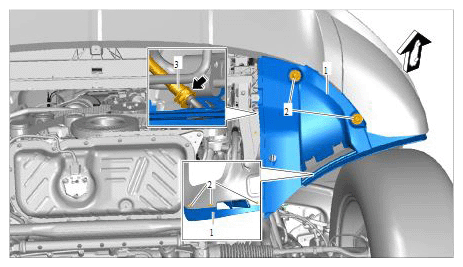

Side cover for front underbody
