Removing Central Cover For Front Underbody

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Irritant substances and materials

Itching
Skin irritation

→ Wear personal protective gear.

Information:

The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment .
The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant .
Some steps must be carried out automatically .
Some of the repair illustrations show only one side of the vehicle .

Release expansion rivets -3- and remove them.
Unscrew fastening screws -2- and remove central cover at the front -1- .

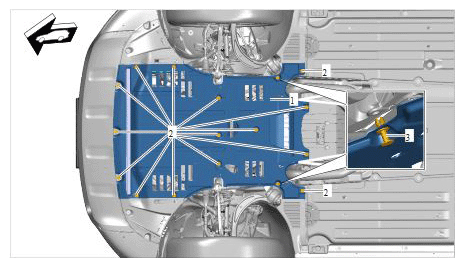

Fig 1: Underbody Center Cover Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Central cover for front underbody
