Removing Side Member Reinforcement

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

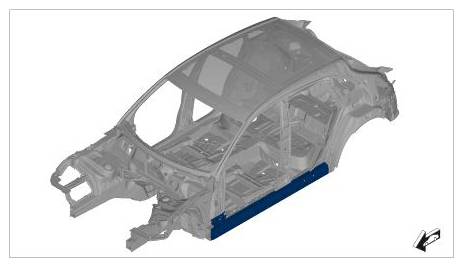

Fig 1: Side Member Reinforcement Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of side member reinforcement

Remove side member reinforcement.

Information: Drill out the connection point on one side only. Do not damage the plate underneath.

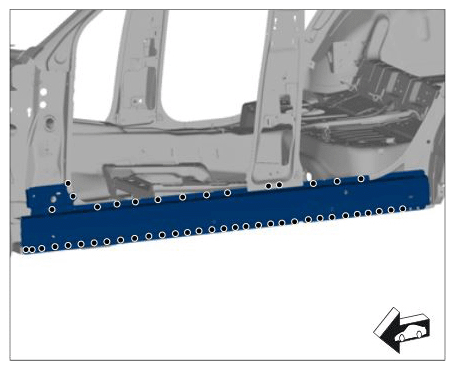

1.1. Drill out spotwelds using spotweld drill .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

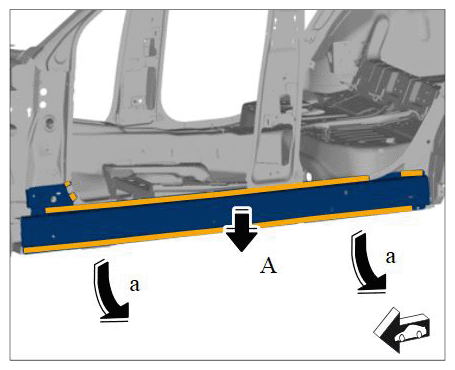

Removing side member reinforcement

Heat bonding areas.

2.1. Pull down side member reinforcement in the inner B-pillar area -arrow A- and remove it -arrows a- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing side member reinforcement
