Preparing Centre Side Member For Installation

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information: Adhesive must not be applied to areas to be plug-welded or fully welded using inert gas.

Fit in centre side member.

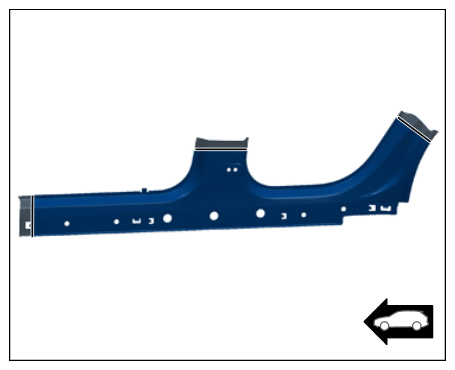

1.1. Cut centre side member at the transitions to the body leaving an overlap of 30 mm.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing centre side member

Fit in centre side member again.
1. 2.1. Make cuts through the centre side member and body in the overlap areas.
Prepare centre side member for bonding and welding.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing centre side member

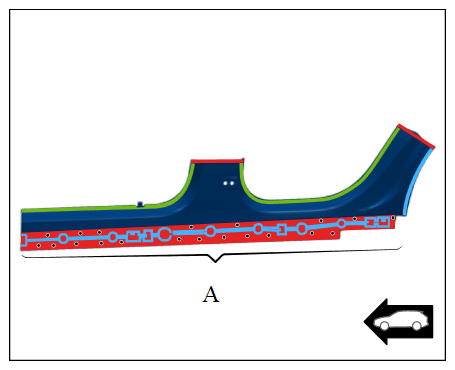

Green	Resistance spot-welding + bonding
Blue	Bonding
Red	Resistance spot-welding/apply a full weld using inert gas without bonding
