Removing Inner Side Member

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

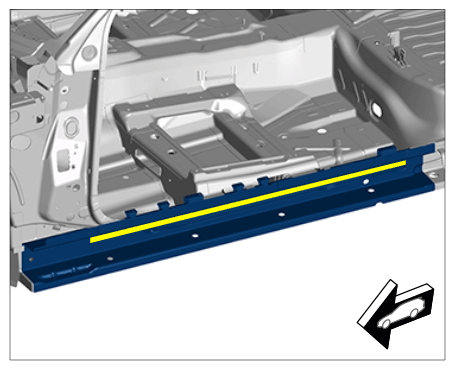

Fig 1: Inner Side Member Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

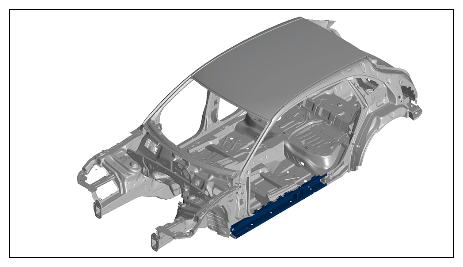

Installation position of inner side member

Information: Drill out the connection point on one side only. Do not damage the plate underneath.

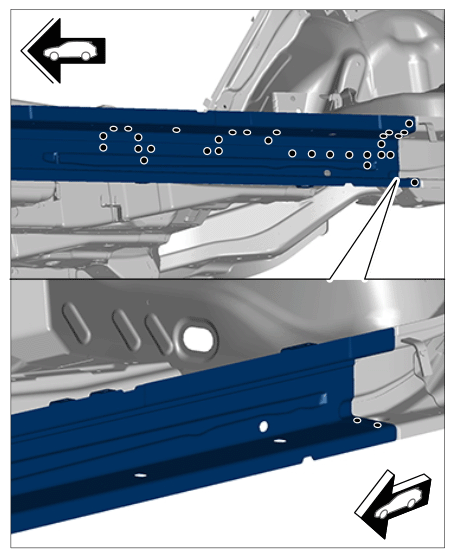

Drill out spotwelds using spotweld drill .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing inner side member

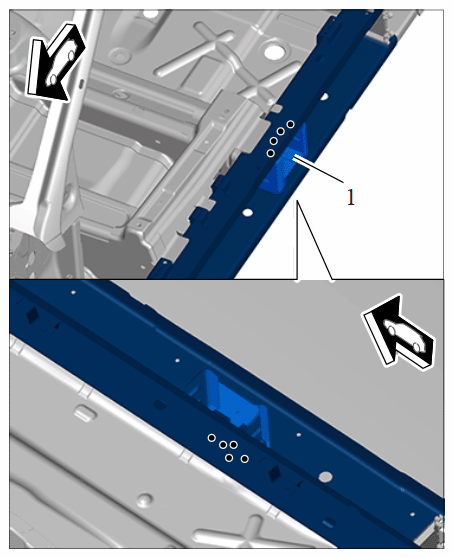

Drill out spotwelds on reinforcement -1- using spotweld drill .

2.1. Remove reinforcement.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing reinforcement

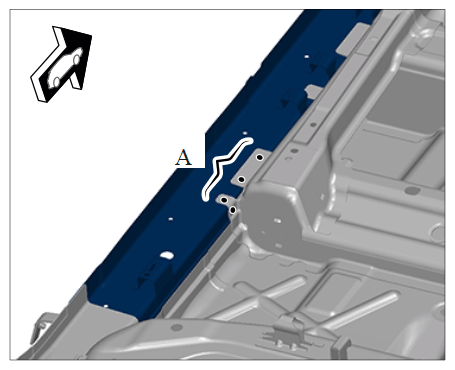

Drill through spotwelds In area -A- using spotweld drill

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing inner side member

Information: Drill out the connection point on one side only. Do not damage the plate underneath.

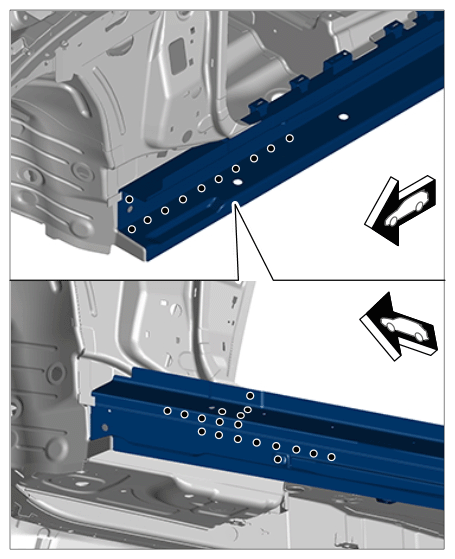

Drill out spotwelds using spotweld drill .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing inner side member

Heat the marked bonding areas.

5.1. Remove inner side member.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing inner side member
