Cut Variants

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Cuts can be made in the defined areas in the outer side member due to the parts dimensions. The purpose of the different cuts is to keep the repair area as small as possible in the event of damage.

The diagram should help you to determine the correct position of cuts.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information: Cut variants on outer side member

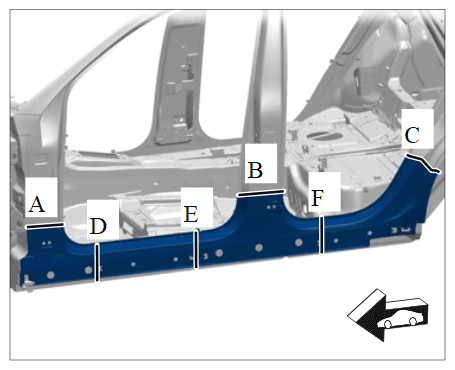

A-B-C - Replace cuts for outer side member. Refer to 514555 REPLACING OUTER SIDE MEMBER .

B-C-D - Replace cuts for centre side member. Refer to 514855 REPLACING CENTRE SIDE MEMBER .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cut variants on outer side member

E-F - Replace cuts for B-pillar. Refer to 514155 REPLACING B-PILLAR .

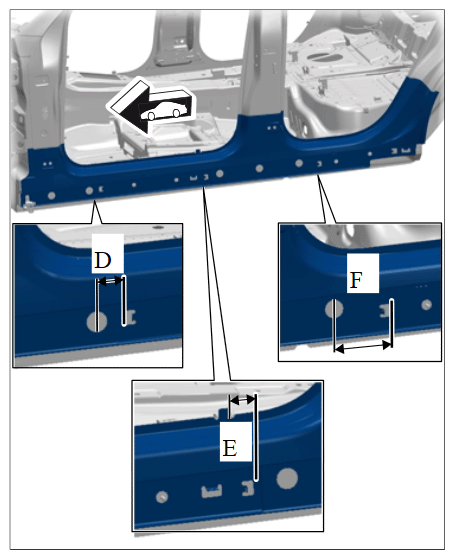

D - → Distance: 60 mm

E - → Distance: 23 mm

F - → Distance: 75 mm
