Preparing Outer Side Member For Installation

WARNING: This page is about a different car, the 2018 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information: Adhesive must not be applied to areas to be plug-welded or fully welded using inert gas.

Fit in outer side member.

1.1. Cut outer side member at the transitions to the body leaving an overlap of 30 mm.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

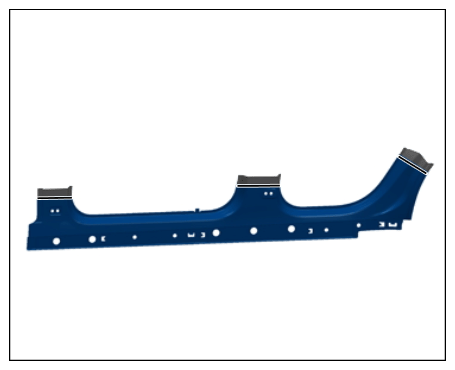

Preparing outer side member

Prepare outer side member for bonding and welding.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

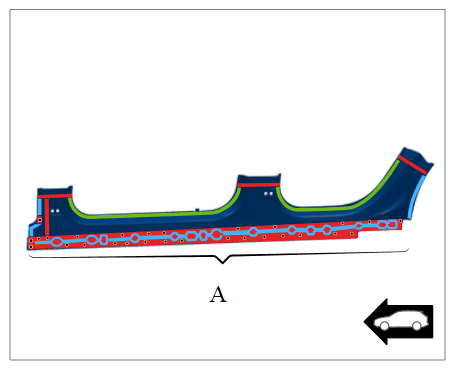

Preparing outer side member

Green	Resistance spot-welding + bonding
Blue	Bonding
Red	Resistance spot-welding/apply a full weld using inert gas without bonding
